Section 6 (P-HEV Hybrid Powertrain Control System (Diagnostics) (1 Of 2))
>>
Electrical Component Location
>>
Location
Section 6 (P-HEV Hybrid Powertrain Control System (Diagnostics) (1 Of 2)): Electrical Component Location: Location
WARNING:
This page is about a different variant/trim than selected.

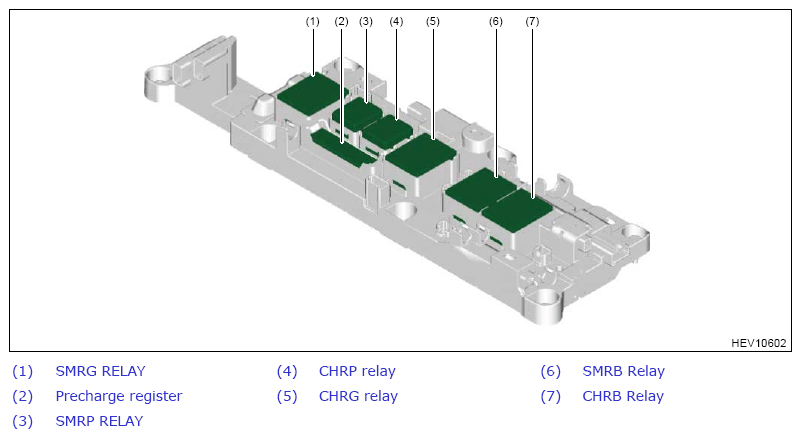

Courtesy of SUBARU OF AMERICA, INC.

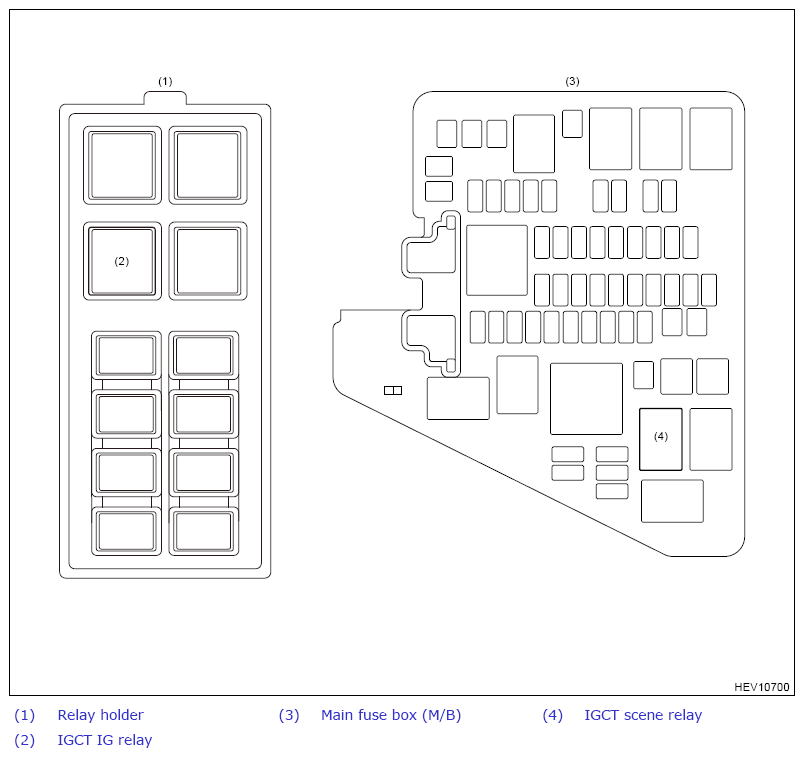

Courtesy of SUBARU OF AMERICA, INC.

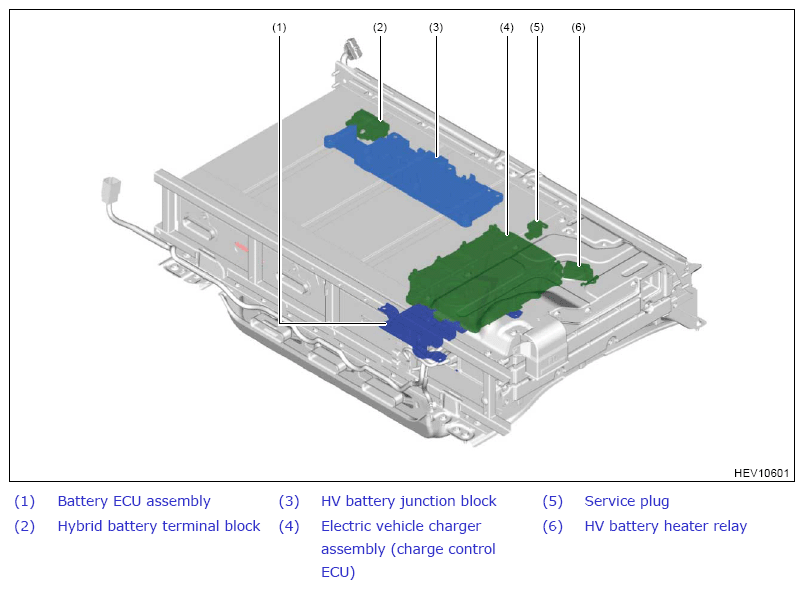

Courtesy of SUBARU OF AMERICA, INC.

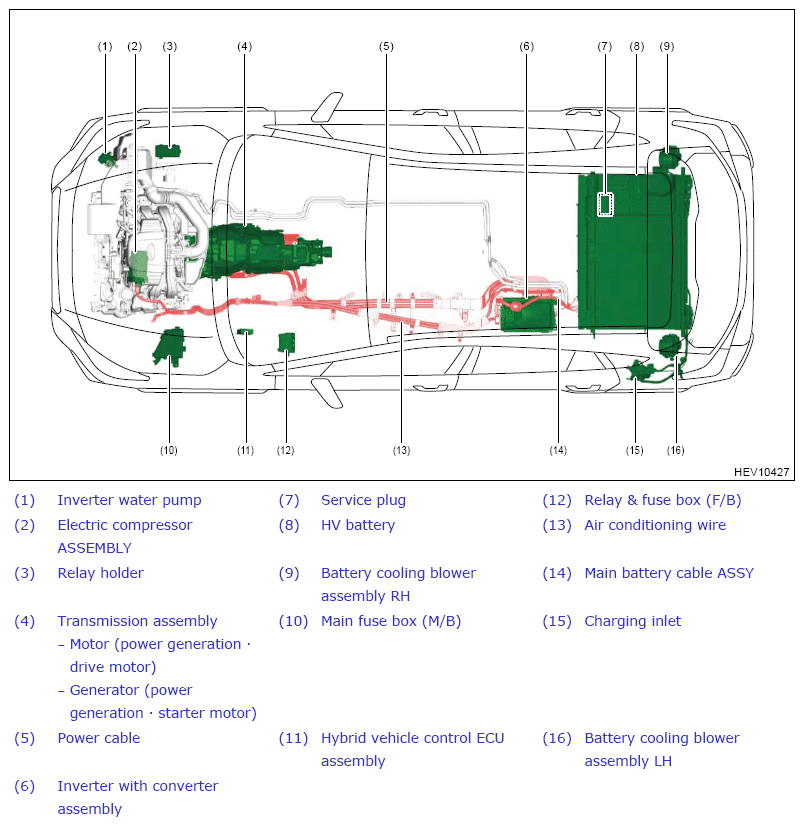

Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
