Check List for Interview: Check

WARNING: This page is about a different variant/trim than selected.

Inspect the following items regarding the vehicle's state.

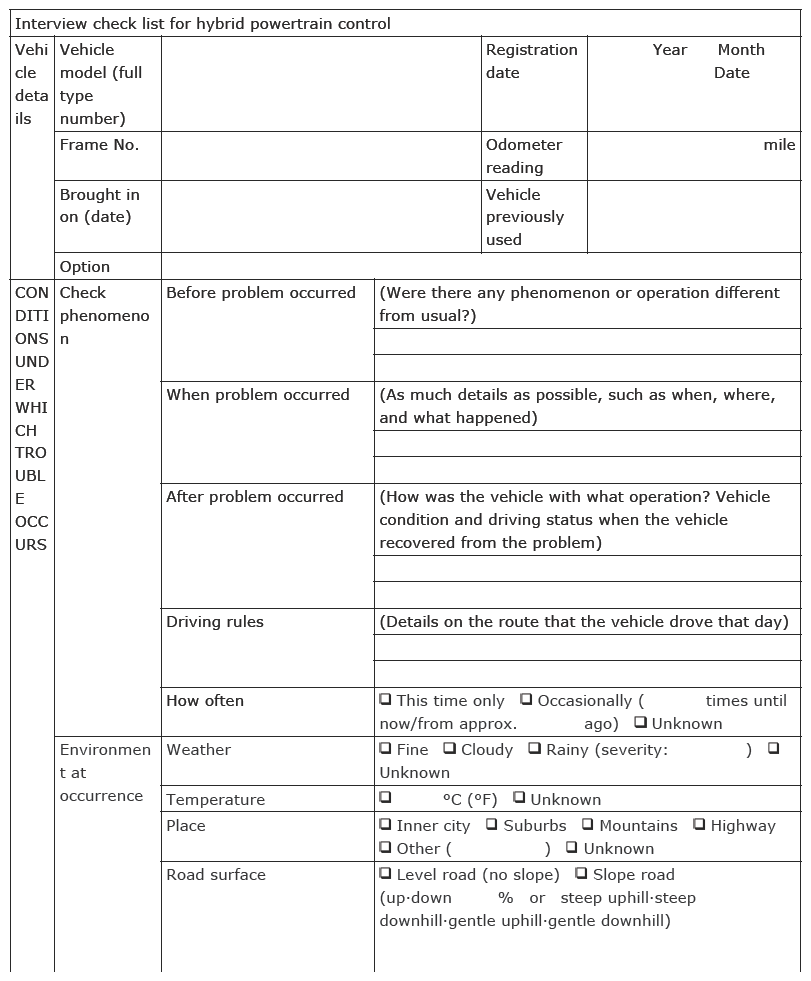

G13617913Courtesy of SUBARU OF AMERICA, INC.

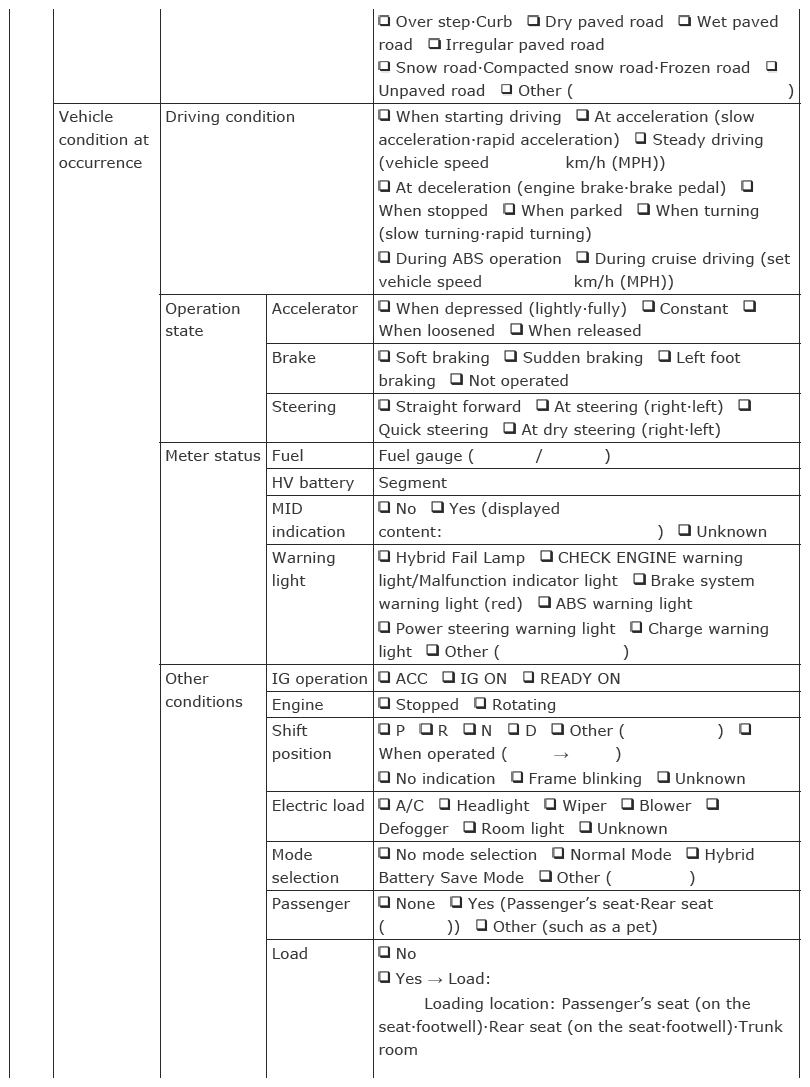

G13617914Courtesy of SUBARU OF AMERICA, INC.

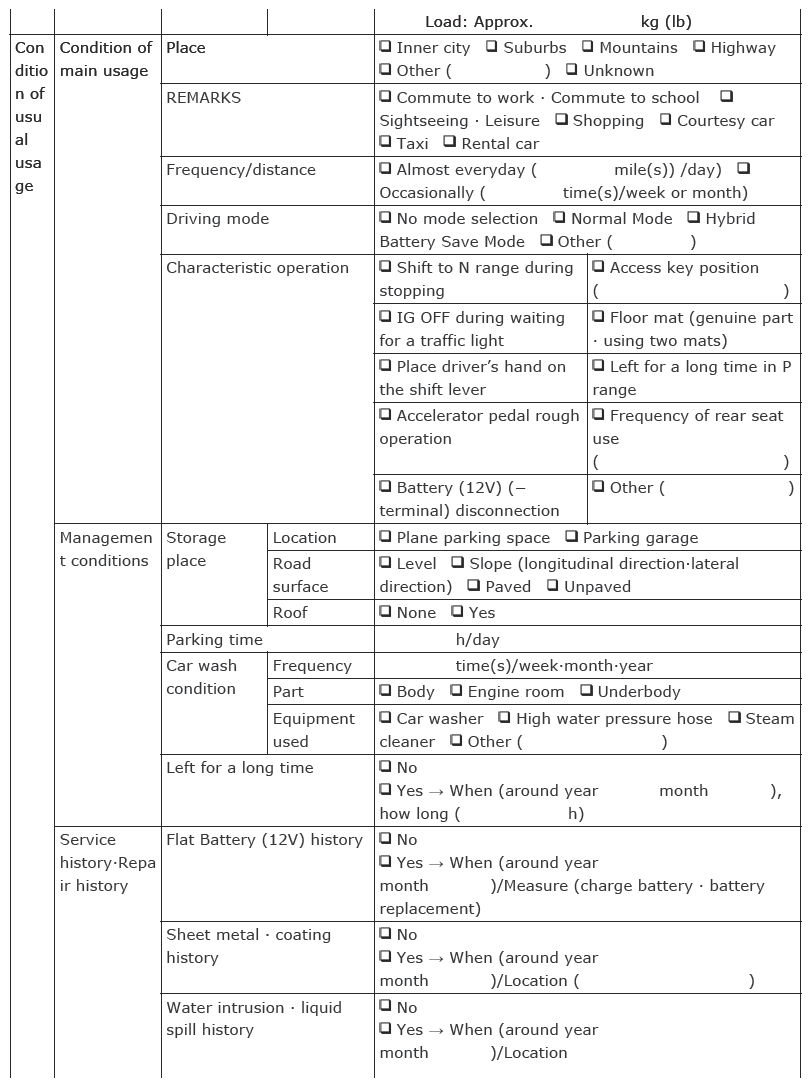

G13617915Courtesy of SUBARU OF AMERICA, INC.

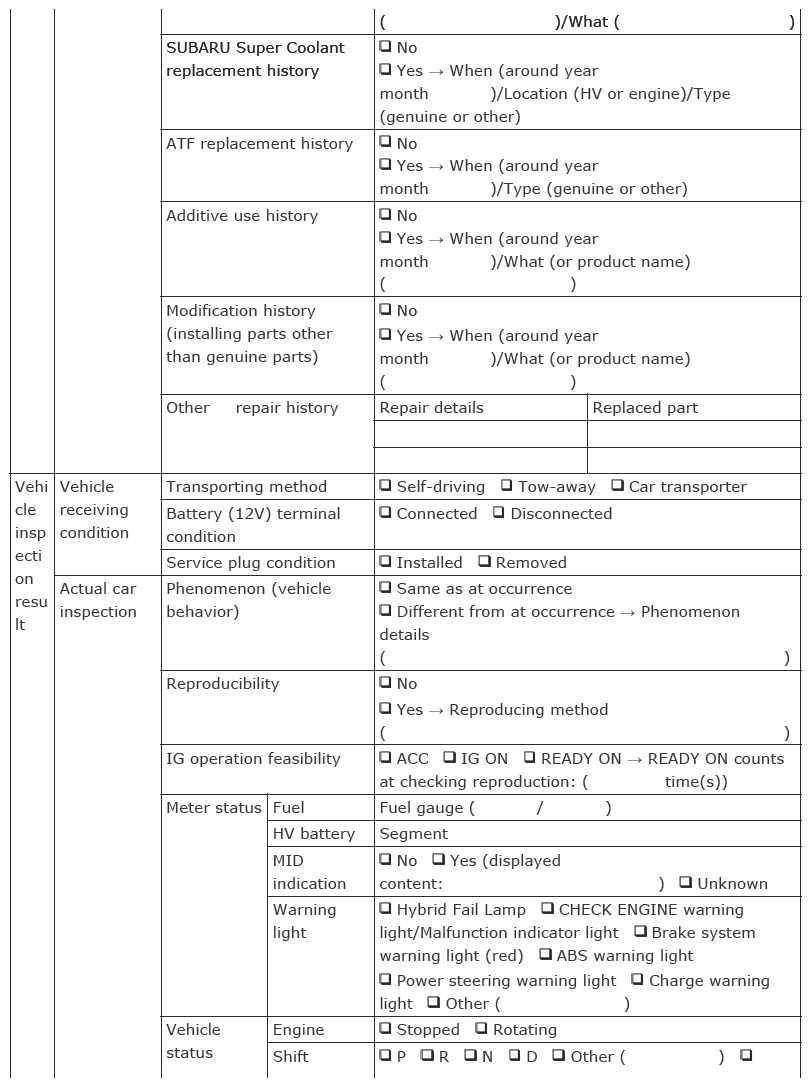

G13617916Courtesy of SUBARU OF AMERICA, INC.

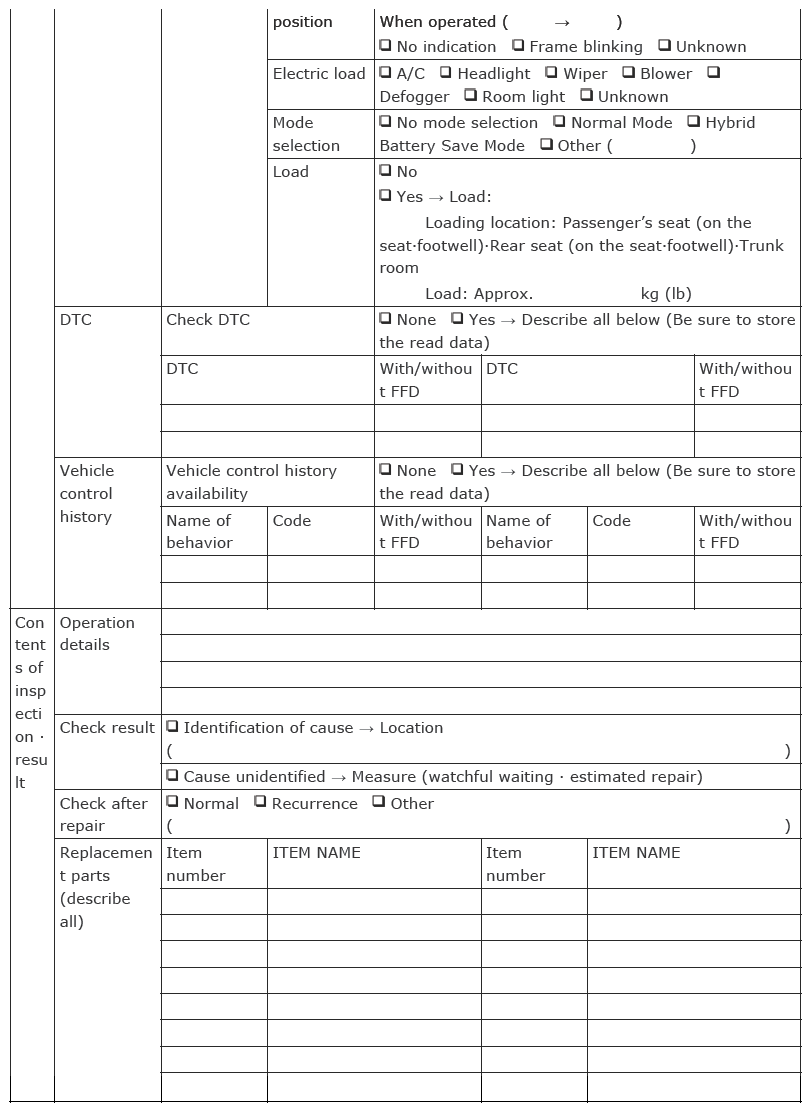

G13617917Courtesy of SUBARU OF AMERICA, INC.
