Fuel Delivery And Evaporation Lines: Removal: Notes

WARNING: This page is about a different variant/trim than selected.

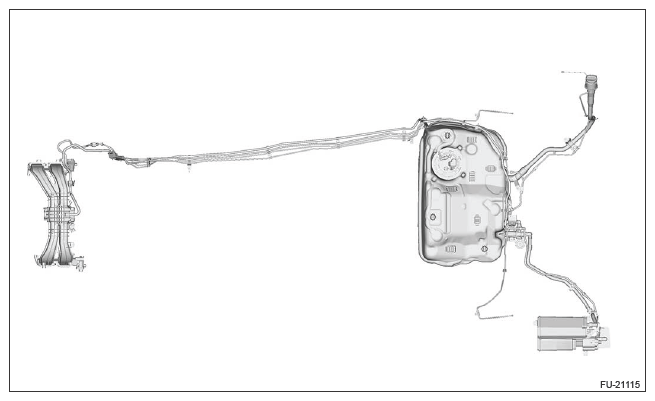

G13231056Courtesy of SUBARU OF AMERICA, INC.
WARNING: Place "NO OPEN FLAMES" signs near the working area.
CAUTION: Be careful not to spill fuel.
  1. Release the fuel pressure. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL>PROCEDURE>RELEASING OF FUEL PRESSURE .
  2. Drain fuel. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL>PROCEDURE>DRAINING FUEL (WITH SUBARU SELECT MONITOR) .
  3. Disconnect the ground terminal from battery. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  4. Open the fuel filler lid and remove the fuel filler cap.
    NOTE: This operation is required to release the inner pressure of the fuel tank.
  5. Remove the fuel delivery tube clamp from the fuel delivery tube.
    G13229999Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the quick connector on the fuel delivery tube from the fuel pipe assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE A) .
    G13230002Courtesy of SUBARU OF AMERICA, INC.

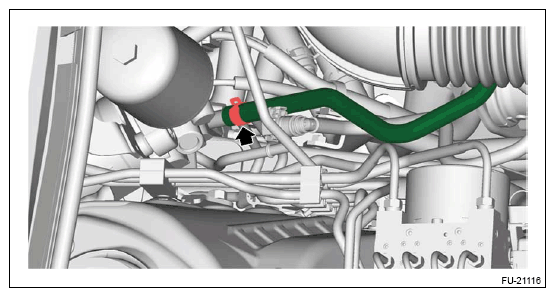

  7. Disconnect the evaporation hose from the fuel pipe assembly.
    G13231059Courtesy of SUBARU OF AMERICA, INC.

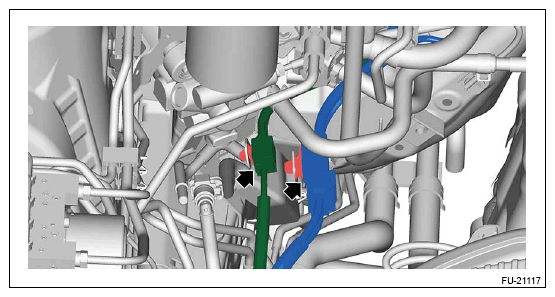

  8. Remove the connector from the fuel pipe bracket A.
    G13231060Courtesy of SUBARU OF AMERICA, INC.
  9. Lift up the vehicle.

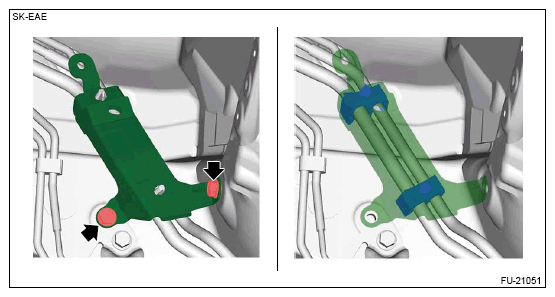

  10. Remove the bolts securing the fuel bracket A, and remove the pipe clamp from the fuel pipe assembly.
    G13231061Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the fuel tank. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL TANK>REMOVAL .
  12. Remove the hoses from the fuel tank. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>GENERAL DESCRIPTION>COMPONENT>FUEL TANK 1 .

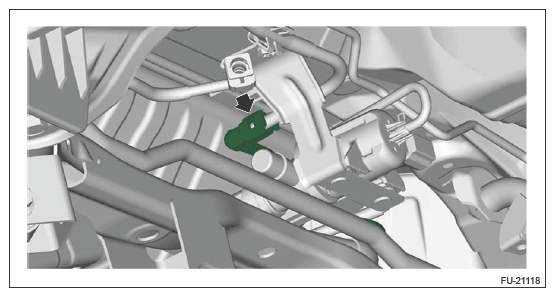

  13. Disconnect the purge tube from the fuel pipe assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE E) .
    G13231062Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the floor under protector RH. Refer to EXTERIOR/INTERIOR TRIM>FLOOR UNDER PROTECTOR>REMOVAL .
  15. Disconnect the brake pipe. Refer to BRAKE>BRAKE HOSE>REMOVAL>REAR BRAKE HOSE . Refer to BRAKE>BRAKE PIPE>REMOVAL>CENTER BRAKE PIPE .

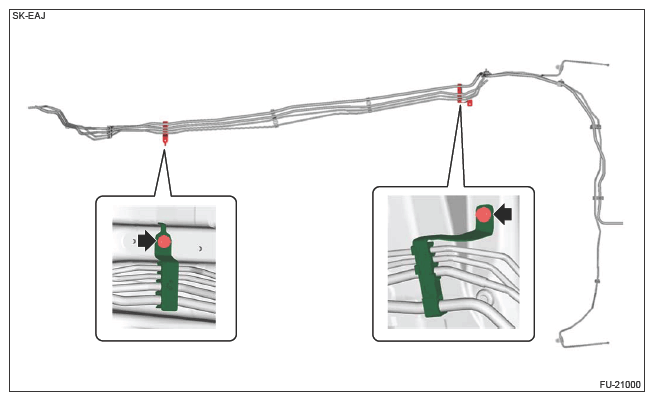

  16. Remove the bolts securing the fuel pipe bracket B and the fuel pipe bracket C, and remove the pipe clamp from the fuel pipe assembly.
    G13231063Courtesy of SUBARU OF AMERICA, INC.

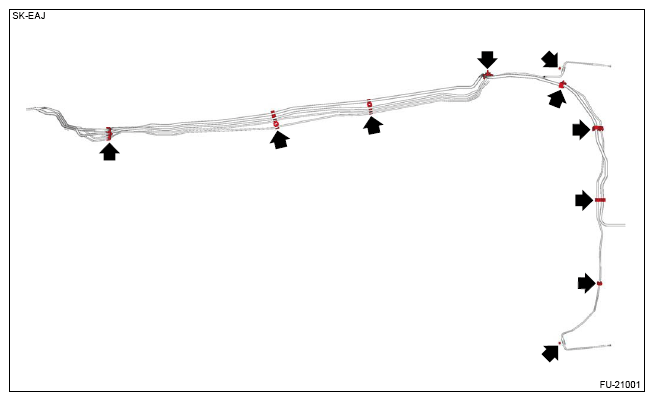

  17. Remove the fuel pipe assembly.
    G13231064Courtesy of SUBARU OF AMERICA, INC.
