LH Side

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the front under cover. Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

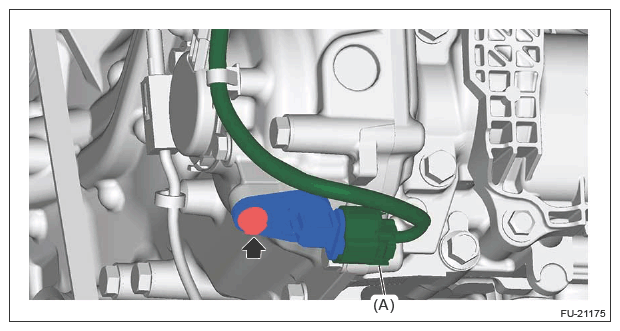

  4. Disconnect the connector (A) and remove the camshaft position sensor.
    G13230923Courtesy of SUBARU OF AMERICA, INC.
