Front Under Cover: Removal

  1. Lift up the vehicle.
  2. Remove the bolts and clips, and remove the under cover - front.

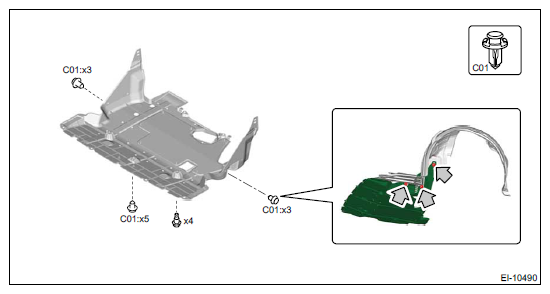

    • Impreza model
      G11246458Courtesy of SUBARU OF AMERICA, INC.

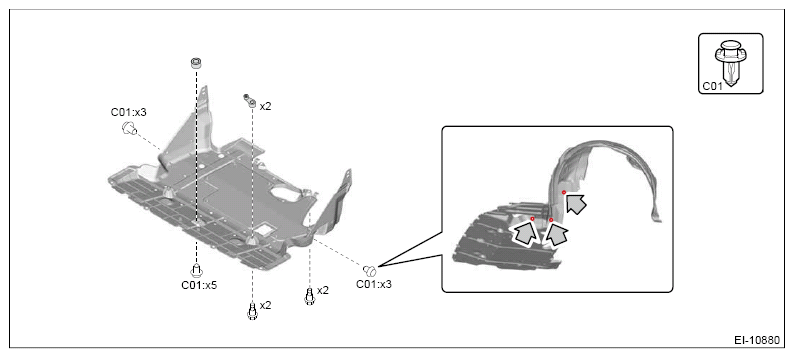

    • Crosstrek model
      G12399174Courtesy of SUBARU OF AMERICA, INC.
