Exhaust Gas RECIRCULATION Control Circuit Range/Performance

WARNING: This page is about a different variant/trim than selected.

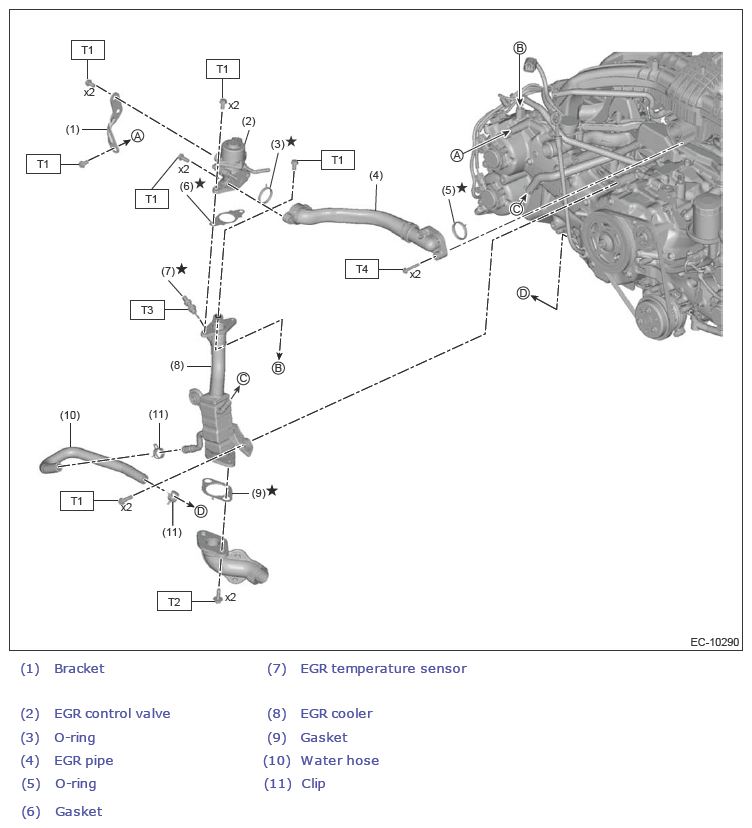

Fig 1: Exhaust Gas Recirculation Control Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 19 (1.9, 14.0)

T2: 24 (2.4, 17.7)

T3: 45 (4.6, 33.2)
