When The Whole EGR System Is Removed

WARNING: This page is about a different variant/trim than selected.
CAUTION: If the engine coolant is spilt over the engine or the exhaust pipe, completely wipe it off to avoid emission of smoke or causing a fire.
NOTE: EGR system consists of EGR control valve, EGR pipe, EGR cooler and EGR temperature sensor.
  1. Install the water hose.
    G13231142Courtesy of SUBARU OF AMERICA, INC.

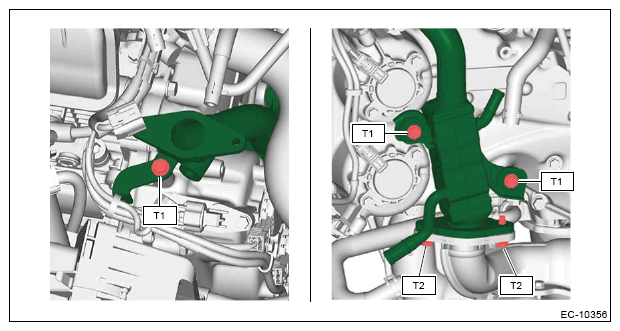

  2. Using a new gasket, install the EGR cooler.

    Tightening torque:

    T1: 19 N.m (1.9 kgf-m, 14.0 ft-lb)

    T2: 24 N.m (2.4 kgf-m, 17.7 ft-lb)

    G13231148Courtesy of SUBARU OF AMERICA, INC.
  3. Connect the water hose (A) and the water hose (B).
    G13231140Courtesy of SUBARU OF AMERICA, INC.

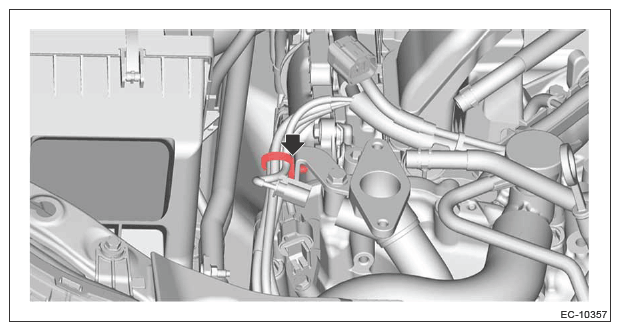

  4. Install the clips.
    G13231150Courtesy of SUBARU OF AMERICA, INC.
  5. When the EGR temperature sensor is removed from the EGR cooler
    NOTE: When the EGR temperature sensor is removed from the EGR cooler, also perform the following steps.
    1. Install the EGR temperature sensor. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO (HEV))>EGR TEMPERATURE SENSOR>INSTALLATION .
  6. When the EGR temperature sensor is not removed from the EGR cooler
    NOTE: When the EGR temperature sensor is not removed from the EGR cooler, also perform the following steps.
    1. Connect the EGR temperature sensor connector.

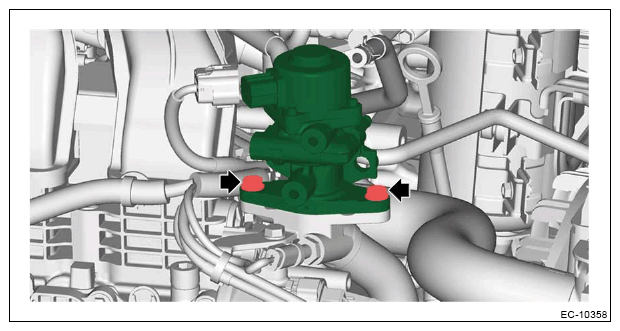

  7. Using a new gasket, install the EGR control valve.

    Tightening torque:

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

    G13231151Courtesy of SUBARU OF AMERICA, INC.

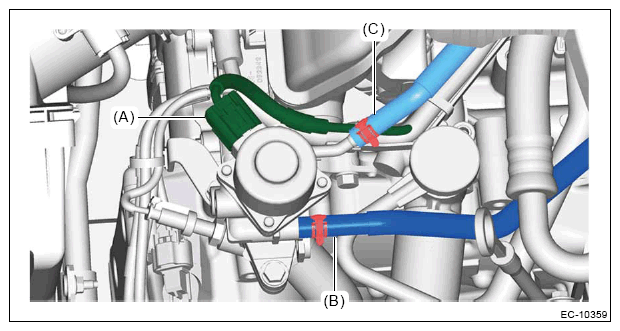

  8. Connect the preheater hose (B) and preheater hose (C).
  9. Connect the connector (A).
    G13231152Courtesy of SUBARU OF AMERICA, INC.
  10. Temporarily tighten the EGR pipe by using a new O-ring.
    G13231136Courtesy of SUBARU OF AMERICA, INC.

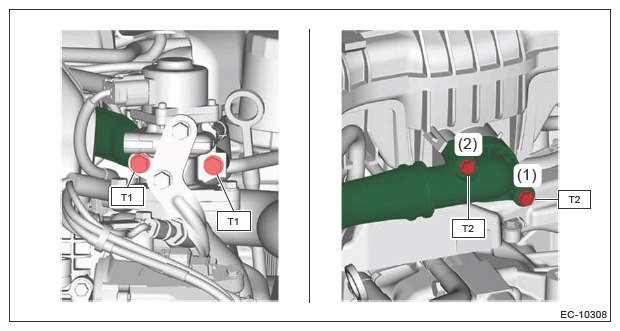

  11. Tighten the bolt on the EGR control valve side.

    Tightening torque:

    T1: 19 N.m (1.9 kgf-m, 14.0 ft-lb)

  12. Tighten the bolts on the intake manifold side in the numerical order shown in the figure.

    Tightening torque:

    T2: 9 N.m (0.9 kgf-m, 6.6 ft-lb)

    Fig 1: Intake Manifold Side Bolts Tightening Sequence
    G13231138Courtesy of SUBARU OF AMERICA, INC.

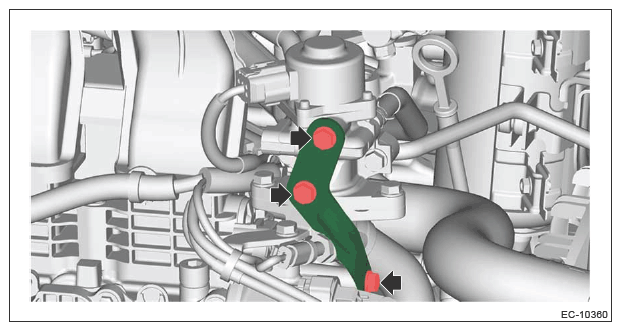

  13. Attach the bracket.

    Tightening torque:

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

    G13231155Courtesy of SUBARU OF AMERICA, INC.
  14. Install the electric compressor assembly. Ref. to AIR CONDITIONER (HEV)>COMPRESSOR>INSTALLATION .
  15. Install the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE DUCT>INSTALLATION .
  16. Connect the battery ground terminal. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  17. Fill the engine coolant (engine side). Ref. to COOLING (H4DO (HEV))>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT>ENGINE SIDE .
