Section 23 (Emission Control Systems (Aux. Emission Control Devices) (HEV)): Canister: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the rear wheel LH. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  3. Lift up the vehicle.
  4. Remove the mud guard - rear LH. Ref. to EXTERIOR/INTERIOR TRIM>MUD GUARD>REMOVAL .

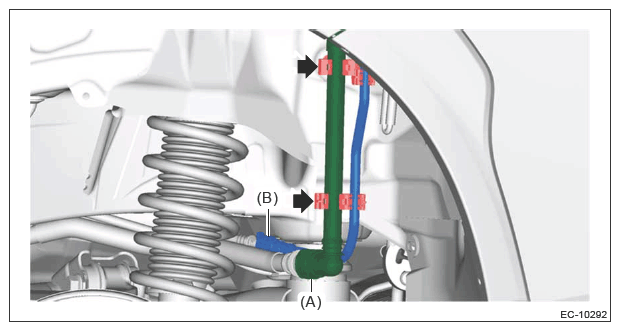

  5. Disconnect the vent tube No. 1 (A) and remove from the tube clamp. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE H) .
  6. Disconnect the purge tube No. 2 (B) and remove from the tube clamp. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE E) .
    G13231102Courtesy of SUBARU OF AMERICA, INC.

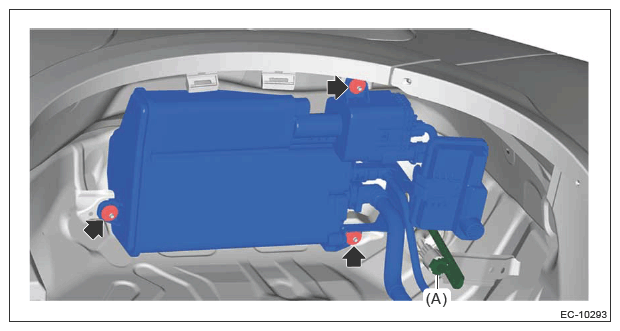

  7. Disconnect the connector (A), and remove the canister and drain filter as an assembly.
    G13231103Courtesy of SUBARU OF AMERICA, INC.

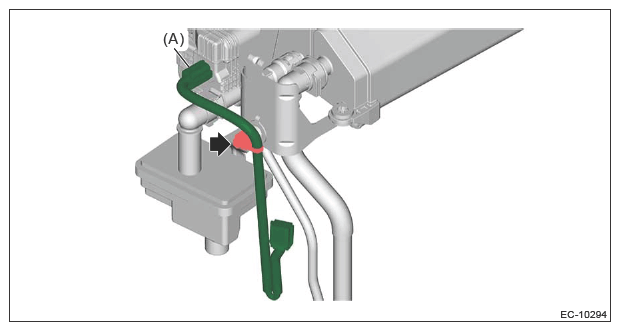

  8. Disconnect the connector (A), and remove the harness from the canister protector.
    G13231104Courtesy of SUBARU OF AMERICA, INC.

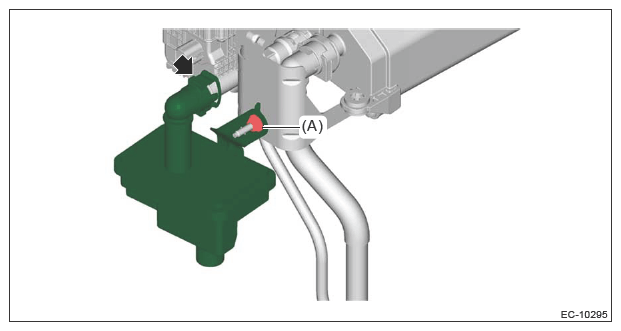

  9. Remove the nut (A) securing the drain filter.
  10. Remove the drain filter. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE G) .
    G13231105Courtesy of SUBARU OF AMERICA, INC.

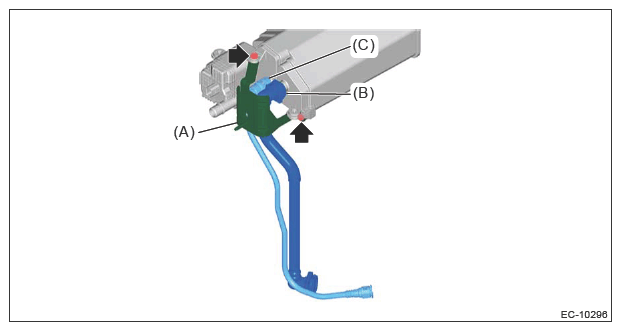

  11. Remove the canister protector (A).
  12. Disconnect the vent tube No. 1 (B). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE H) .
  13. Disconnect the purge tube No. 2 (C). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE D) .
    G13231106Courtesy of SUBARU OF AMERICA, INC.

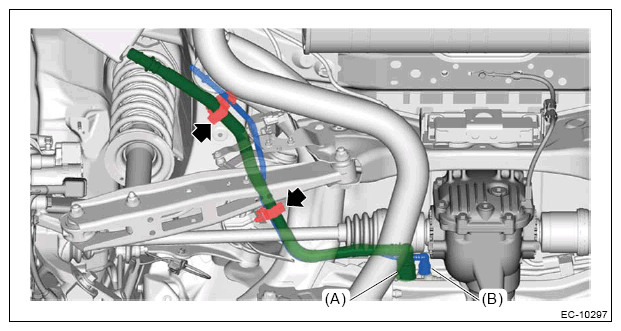

  14. Disconnect the vent tube No. 2 (A) from the electric vent solenoid valve assembly, and remove from the tube clamp. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE H) .
  15. Disconnect the purge tube No. 1 (B) from the fuel pipe assembly, and remove from the tube clamp. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE E) .
G13231107Courtesy of SUBARU OF AMERICA, INC.
