Mud Guard: Removal

  1. Lift up the vehicle.
  2. Remove the wheels.
  3. Remove the spoiler assembly - side sill or the garnish assembly - side sill. Refer to EXTERIOR/INTERIOR TRIM>SIDE GARNISH & SIDE SPOILER .
  4. Remove the under cover - front. Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  5. Remove the screws and clips to remove the mud guard.

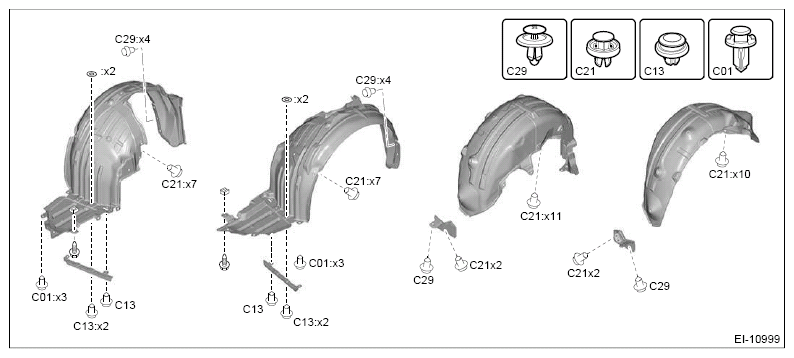

    • Impreza model
      G12399175Courtesy of SUBARU OF AMERICA, INC.
      NOTE: For model with the spoiler assembly - side sill, the number of clips is different.

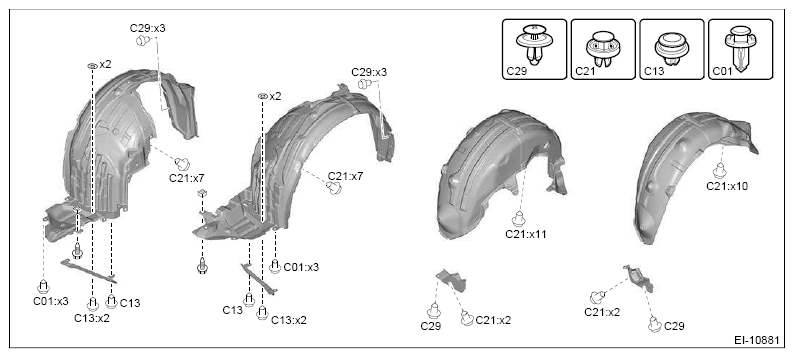

    • Crosstrek model (except for hybrid)
      G12399176Courtesy of SUBARU OF AMERICA, INC.

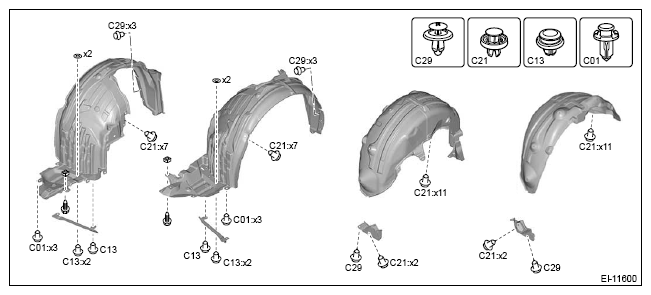

    • Crosstrek hybrid model
      G13235252Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the air flap as required.
