Overview Of Error
WARNING: This page is about a different variant/trim than selected.
Fault is detected, when the charging power cannot be output due to an internal malfunction of the charger.
The following are possible causes of the error.
- Low voltage line
- Charger IFU malfunction (fault in IAC current sensor and VAC voltage sensor)
- Malfunction of Battery ECU assembly (IB current sensor/VB voltage sensor)
- High voltage line
- Loss of charging path (malfunction of the high voltage circuit in the charger)

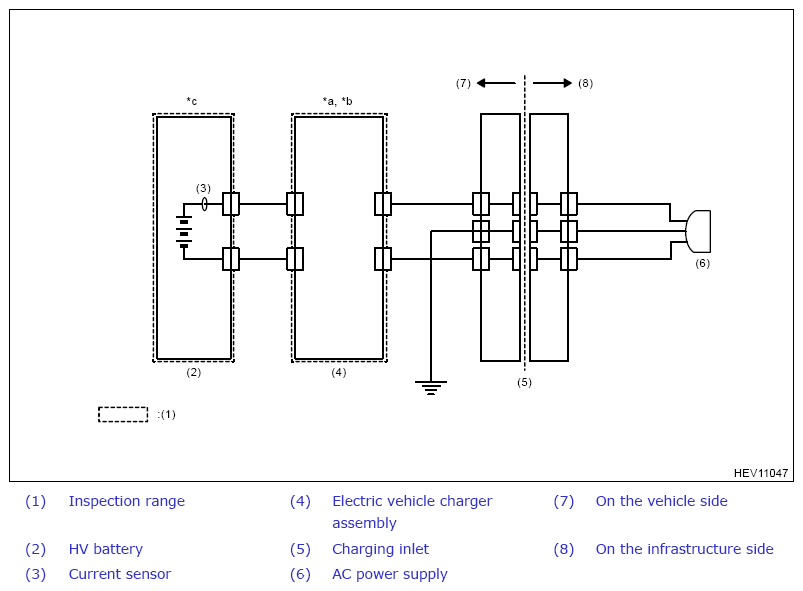

| Location in system diagram | Contents |
|---|---|
| *a | Charger IFU malfunction (fault in IAC current sensor and VAC voltage sensor) |
| *b | Loss of charging path (malfunction of the high voltage circuit in the charger) |
| *c | Malfunction of Battery ECU assembly (IB current sensor/VB voltage sensor) |
