THE Charging connector DOES NOT LOCK: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to PLUG-IN BATTERY CHARGER (DIAGNOSTICS)>GENERAL DESCRIPTION>CAUTION .
The Charging connector lock system, model uses keyless access with push button start (keyless access function). A malfunction in the keyless access function may prevent the charging lid lock and Charging connector lock functions from operating. When there is a malfunction of the keyless access function, first check the keyless access with push button start (keyless access function).
When checking, set the keyless access system function of the keyless access with push button start (keyless access function) to "Active" in the customization function.
When operation of the charging lid lock/unlock and Charging connector lock/unlock are linked, lock/unlock operation will not occur until the motor temperature has dropped in order to protect the motor. If this occurs, wait for 3 minutes or more to allow the lock motor to cool, then check its operation.
After linked operation of charging lid lock/unlock and Charging connector lock/unlock occurred, commands are not accepted for a certain time in order to protect the motor. If this occurs, wait for 3 seconds or more after the previous operation before checking operation.
It is possible that Charging connector lock/unlock was not possible because the Charging connector lock was dirty or frozen, or a foreign object was caught in it. Therefore if there is dirt or freezing, remove it before checking.
If an Electric vehicle charger cable assembly from another company was used, it is possible that the Charging connector lock/unlock function will not operate correctly. Use the Electric vehicle charger cable assembly that was provided with the vehicle to check Charging connector lock/unlock operation before inspecting.
After connecting the Charging connector, using the MFD charging settings to change the Charging connector lock setting (changing from the current setting to automatic locking or automatic locking & automatic unlocking) does not cause Charging connector lock/unlock to operate.
Charging connector lock/unlock may not be possible after emergency lid unlock. After emergency lid unlock, open the charging lid (charging lid push-lifter (charging lid courtesy switch) extended) → then connect the Charging connector.
Charging connector lock/unlock may not be possible after emergency connector unlock. After emergency connector unlock, pull out the Charging connector → then close the charging lid (charging lid courtesy switch (Charge inlet switch) push-lifter retracted).
Use the MFD charging settings to set the Charging connector lock setting to "Manual lock" before checking.

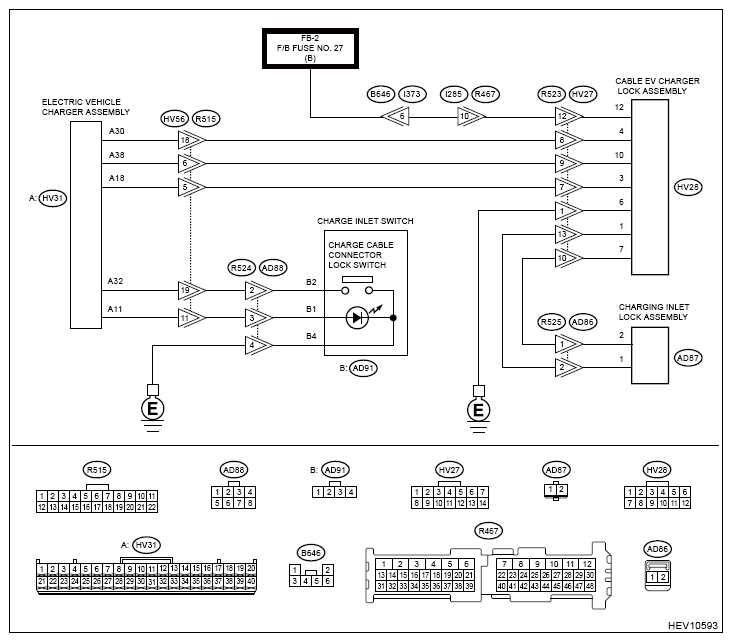

Wiring diagram:

Charging system Ref. to WIRING SYSTEM (CROSSTREK MODEL (HEV))>CHARGING SYSTEM>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

CHECK DTC .
Using the Subaru Select Monitor, read all DTCs. Ref. to COMMON (DIAG)>DIAGNOSTIC TROUBLE CODE (DTC) .

Are any DTCs displayed?

Yes : Perform the diagnosis for the displayed DTCs.

No : Go to 2.
CHECK THE KEYLESS ACCESS FUNCTION .
Refer to [Keyless Access with Push Button Start]. Ref. to KEYLESS ACCESS WITH PUSH BUTTON START (DIAGNOSTICS)>GENERAL DESCRIPTION>INSPECTION .

NOTE: With the vehicle doors locked, check the status of the keyless access function and charging lid lighting function. (When the vehicle doors are unlocked, the status of the keyless access function and charging lid lighting function do not operate.)

Does the keyless access function operate? (Door lock/unlock is possible.)

Yes : Go to 3.

No : Perform the diagnosis for [Keyless Access with Push Button Start]. Ref. to KEYLESS ACCESS WITH PUSH BUTTON START (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE .
CHECK THE CHARGING LID LIGHTING FUNCTION .
1. Close all doors of the vehicle.
2. Lock the vehicle doors.
3. Hold the Access key at the same height as the charging lid and bring it within approximately 70 cm of the charging lid. Check that the Access key LED blinks.
  NOTE:
  - The charging lid is located on the rear left side of the vehicle.
  - With the vehicle doors locked, check the status of the keyless access function and charging lid lighting function. (When the vehicle doors are unlocked, the status of the keyless access function and charging lid lighting function do not operate.)
4. Hold the Access key and bring it within approximately 30 cm of the Keyless access outdoor antenna (charging inlet door). Check that the Access key LED blinks.
  NOTE:
  - The Keyless access outdoor antenna (charging inlet door) is located on the rear left side of the vehicle below the charging lid.
  - In some cases, communication is not possible within 20 cm of the Keyless access outdoor antenna (charging inlet door).
  - Because bringing the Access key closer to the Keyless access outdoor antenna (charging inlet door) reduces the effects of outside radio interference, it is possible to check whether there are effects from outside radio interference.
  - If the check results show that operation fails only at certain locations and times, then there is a strong possibility that the cause is outside radio interference. Because it is also possible that the function is affected by outside radio interference from parts or accessories that were installed by the dealer, remove any parts or accessories that were installed by the dealer and then check operation.
  - If there is a broadcast antenna, large-screen monitor, wireless open/close garage, wireless security camera, home security system, or similar equipment close to the vehicle, then there may be outside radio interference. In this case, move the vehicle to another location and check the operation.
  - If a radio wave checker is available, it is possible to follow the radio environment check procedure and determine whether or not there are effects from outside radio interference.
If the Access key LED does not blink, go to A.

(The charging lid lighting function is not operating.)

If the Access key LED blinks when close to the charging lid, go to B.

(The charging lid lighting function is operating.)

If the Access key LED does not blink when close to the charging lid, however the LED blinks when close to the Keyless access outdoor antenna (charging inlet door), go to C.

(The charging lid lighting function is operating.)

Yes :
1. Perform the diagnosis for [Keyless Access with Push Button Start]. Ref. to KEYLESS ACCESS WITH PUSH BUTTON START (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE .
2. Go to 4.
3. Effects of outside radio interference.
No : -

CHECK THE Electric vehicle charger assembly. (CHECK THE SIGNAL WITH CHARGING LID OPEN AND Charging connector UNLOCKED.) .

CAUTION: Make sure to wear insulated gloves and protective goggles during the work.

Check that the Service plug is disconnected. Ref. to HYBRID ELECTRIC VEHICLE>SERVICE PLUG .
Connect the Battery (12V) ground terminal. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
Lock all doors.
Hold the Access key (electronic key) and open the charging lid.
Turn to IG ON.

Using a tester, measure the voltage between Electric vehicle charger assembly connector and chassis ground.

NOTE: Open the charging lid after locking the doors so that the charging lid is open and the Charging connector is unlocked. Check the voltage value under these conditions.

Connector & terminal

VOLTAGE SPECIFICATION

Terminal to check		Standard
CBSW	(HV31) No. 30 (+) - Chassis ground (-):	4.5 - 5.5 V
CBMP	(HV31) No. 38 (+) - Chassis ground (-):	0 - 1.5 V
CBMN	(HV31) No. 18 (+) - Chassis ground (-):	0 - 1.5 V
CBO	(HV31) No. 32 (+) - Chassis ground (-):	11 - 14 V
PISW	(HV31) No. 3 (+) - Chassis ground (-):	3.572 - 4.730 V
CPLT	(HV31) No. 5 (+) - Chassis ground (-):	0 - 1.5 V

Using the Subaru Select Monitor, display the following items in the [Data Monitor] of [Plug-in Battery Charger]. Ref. to PLUG-IN BATTERY CHARGER (DIAGNOSTICS)>DATA MONITOR .
- Charging Connector Connect Status Voltage
- Charging Connector Lock Switch Status
- Charging Connector Lock Pin Status
- Charging Connector Lock Motor Unlock Direction Revolution Request Current
- Charging Connector Lock Motor Lock Direction Revolution Request Current
- Charging Current Duty from Charger
- Time Cycle of Charging Current Duty from Charger

Read the following items using Subaru Select Monitor.

Item name	Item explanation	Standard
Charging Connector Connect Status Voltage	Indicates the PISW terminal voltage for judging the Electric vehicle charger cable assembly connection status. (PISW terminal)	3.572 - 4.730 V: When Electric vehicle charger cable assembly is not connected
Charging Connector Lock Switch Status	Indicates the Charge cable connector lock switch status. (CBO terminal)	OFF: When the Charge cable connector lock switch (EV charger lid indicator assembly) is not operated
Charging Connector Lock Pin Status	Indicates the lock pin status of the Charging connector lock. (CBSW terminal)	Unlocked: Lock pin not extended
Charging Connector Lock Motor Unlock Direction Revolution Request Current	Indicates that current was output to turn the Charging connector lock motor in the reverse direction. (CBMN terminal)	OFF: When Charging connector lock motor is not operating
Charging Connector Lock Motor Lock Direction Revolution Request Current	Indicates that current was output to turn the Charging connector lock motor in the forward direction. (CBMP terminal)	OFF: When Charging connector lock motor is not operating
Charging Current Duty from Charger	Indicates the charging current command value. (CPLT terminal)	0%: When Charging connector is not connected
Time Cycle of Charging Current Duty from Charger	Indicates the time for 1 CPLT cycle. (CPLT terminal)	0 μs: When Charging connector is not connected

Turn the ignition to OFF.
Close the charging lid.
Disconnect the ground terminal of Battery (12V). Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

If all read data monitor values are the standard values, go to A.

If the CBSW terminal is not the standard value, go to B.

If the CBMP terminal or CBMN terminal is not the standard value, go to C.

If the CBO terminal is not the standard value, go to D.

If the PISW terminal is not the standard value, go to E.

If the CPLT terminal is not the standard value, go to F.

Yes :

Go to 5.
Go to 7.
Go to 11.
Go to 15.
Go to 19.
Go to 24.

No : -

CHECK THE Electric vehicle charger assembly. (CHECK THE SIGNAL WITH CHARGING LID OPEN AND Charging connector LOCKED.) .
