Charging System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

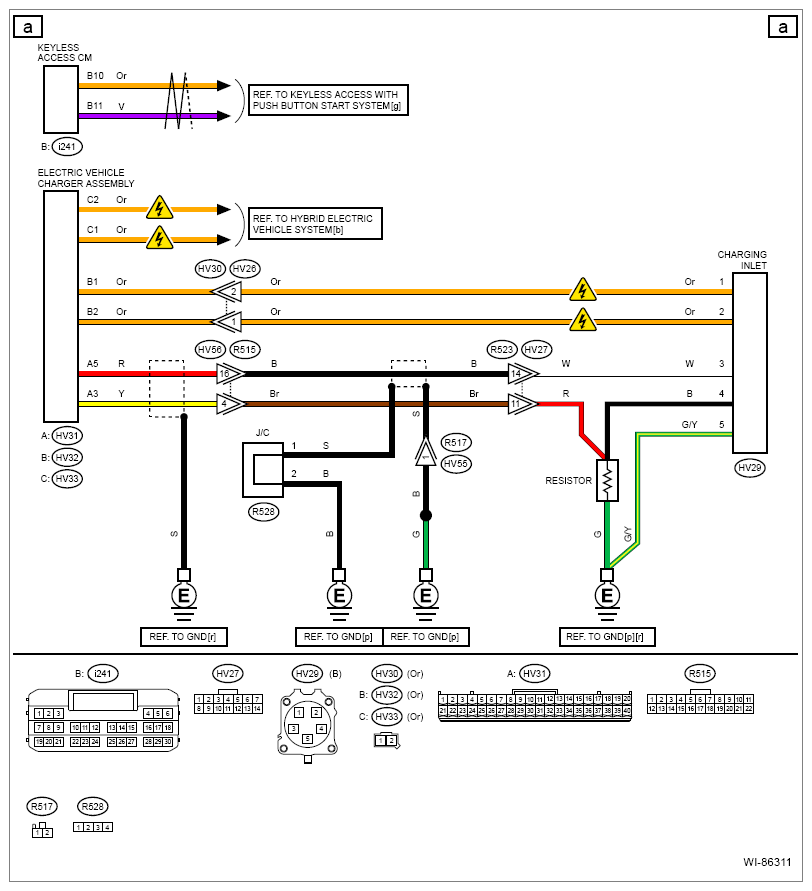

G13614346Courtesy of SUBARU OF AMERICA, INC.

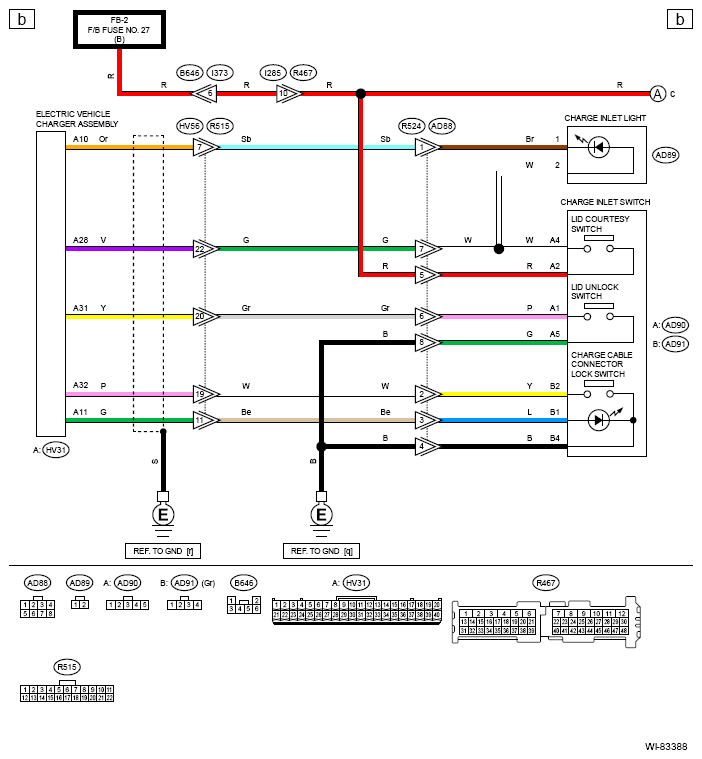

G13236495Courtesy of SUBARU OF AMERICA, INC.

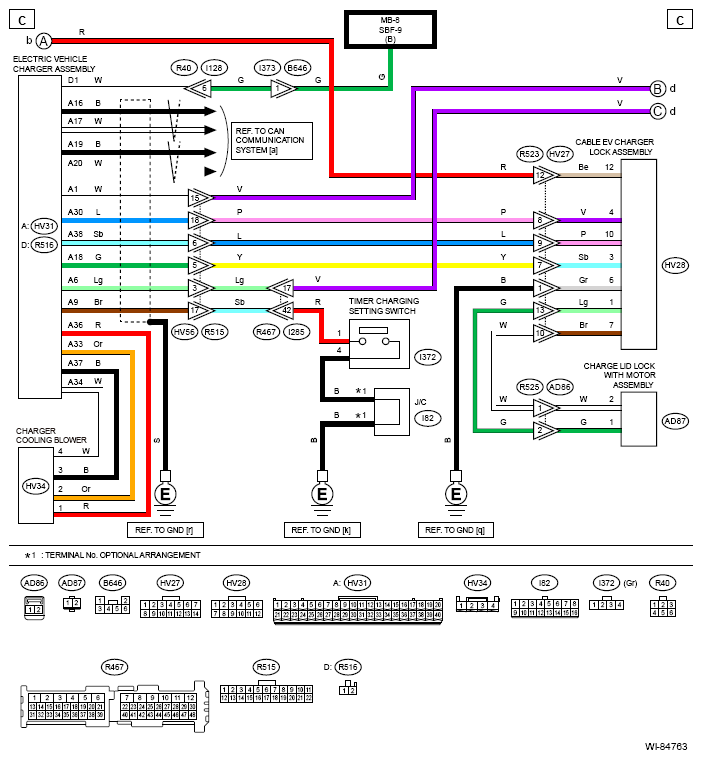

G13236496Courtesy of SUBARU OF AMERICA, INC.

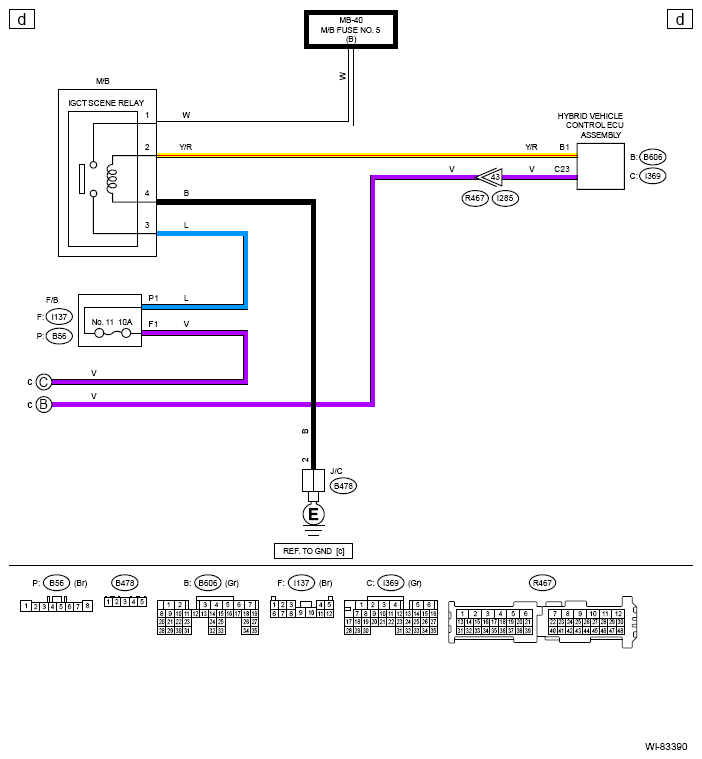

G13236497Courtesy of SUBARU OF AMERICA, INC.

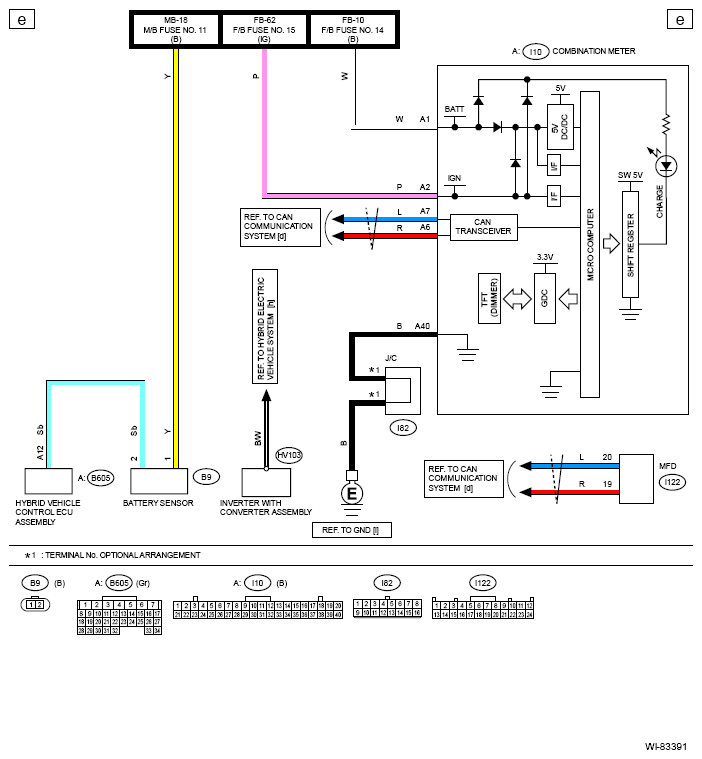

G13236498Courtesy of SUBARU OF AMERICA, INC.
