DTC P0D56-11: Charging Connector Proximity Detection Circuit Short To Ground: Notes

WARNING: This page is about a different variant/trim than selected.

1. -

Outline of diagnosis:

PISW terminal voltage was 0.35 V or less continuously for the prescribed length of time.

(1 trip detection logic)

Trouble symptom:

Plug-in charging suspended

Wiring diagram:

Charging system Ref. to WIRING SYSTEM (CROSSTREK MODEL (HEV))>CHARGING SYSTEM>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to PLUG-IN BATTERY CHARGER (DIAGNOSTICS)>GENERAL DESCRIPTION>CAUTION .

Courtesy of SUBARU OF AMERICA, INC.

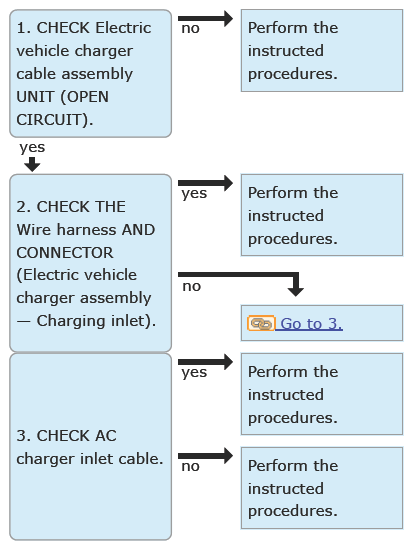

CHECK Electric vehicle charger cable assembly UNIT (OPEN CIRCUIT) .
Check the Electric vehicle charger cable assembly unit. Ref. to HYBRID ELECTRIC VEHICLE>CHARGE CABLE>INSPECTION .

Is the Electric vehicle charger cable assembly OK?

Yes : Go to 2.

No : Replace Electric vehicle charger cable assembly.
CHECK THE Wire harness AND CONNECTOR (Electric vehicle charger assembly - Charging inlet) .
CAUTION: Make sure to wear insulated gloves and protective goggles during the work.
1. Check that the Service plug is disconnected. Ref. to HYBRID ELECTRIC VEHICLE>SERVICE PLUG .
2. Disconnect Electric vehicle charger assembly connector (HV31).
3. Using a tester, measure the resistance between AC charger inlet cable (Charging inlet) connector and chassis ground, and between AC charger inlet cable (Charging inlet) terminals.
  Connector & terminal

  (HV29) No. 4 - (HV29) No. 5:

  (HV29) No. 4 - Chassis ground:
Is the resistance 2.3 - 3.0 kΩ?

Yes : Replace Electric vehicle charger assembly. Ref. to HYBRID ELECTRIC VEHICLE>ELECTRIC VEHICLE CHARGER .

No : Go to 3.
CHECK AC charger inlet cable .
1. Disconnect AC charger inlet cable connector (HV27).
2. Using a tester, measure the resistance between AC charger inlet cable (Charging inlet) connector and chassis ground, and between AC charger inlet cable (Charging inlet) terminals.
  Connector & terminal

  (HV29) No. 4 - (HV29) No. 5:

  (HV29) No. 4 - Chassis ground:
Is the resistance 2.3 - 3.0 kΩ?

Yes : Repair or replace the Wire harness between the AC charger inlet cable and chassis ground.

No : Repair or replace the AC charger inlet cable. Ref. to HYBRID ELECTRIC VEHICLE>CHARGE INLET .
