Water Pipe LH

WARNING: This page is about a different variant/trim than selected.

Temporarily install the water pipe LH with a new O-ring.
Tighten the bolts in the numerical order as shown in the figure.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

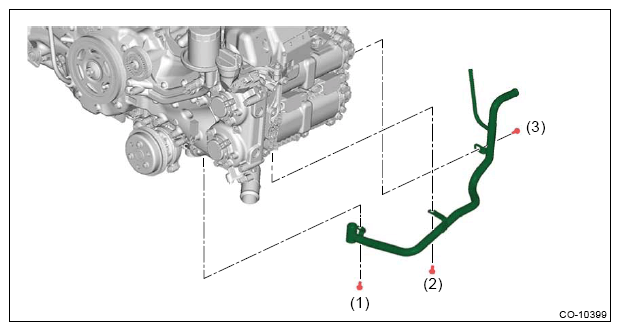

Fig 1: Water Pipe LH Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Lower the engine and remove the lifting device and wire ropes.
Install the nuts which hold the engine mounting to the front crossmember.
CAUTION: Use new nuts.

NOTE: Make sure that locators (a) of the engine mounting are securely inserted.

Tightening torque:

90 N.m (9.2 kgf-m, 66.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>INSTALLATION .
Install the A/C accumulator assembly. Ref. to AIR CONDITIONER (HEV)>ACCUMULATOR>INSTALLATION .
Install the transmission bracket.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)
Install the pitching stopper. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TH2A)>TRANSMISSION MOUNTING SYSTEM>INSTALLATION>PITCHING STOPPER .

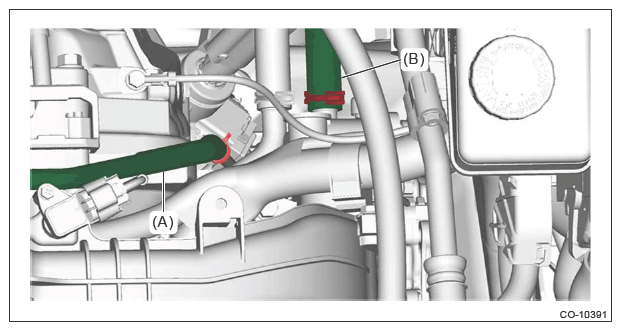

Connect the preheater hose (A) and heater outlet hose (B) to the water pipe LH.

Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>INSTALLATION .
Install the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE DUCT>INSTALLATION .
Install the collector cover. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>COLLECTOR COVER>INSTALLATION .
Connect the battery ground terminal. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
Fill engine coolant. (Engine side) Ref. to COOLING (H4DO (HEV))>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT>ENGINE SIDE .
Set the front hood to the normal position. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>STAY ASSEMBLY - FRONT HOOD .
Install the striker - front hood. Ref. to EXTERIOR BODY PANELS>FRONT HOOD>ASSEMBLY .
