Pitching Stopper
WARNING: This page is about a different variant/trim than selected.

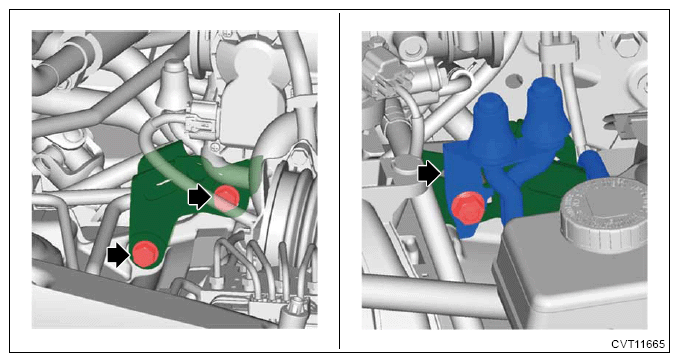

- Install the air breather hose and install the pitching stopper bracket.NOTE: Tighten the bolt side while holding the nut side.
Tightening torque:
41 N.m (4.2 kgf-m, 30.2 ft-lb)

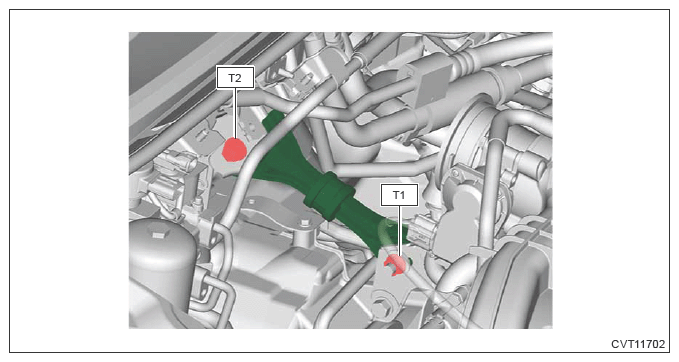

- Install the pitching stopper.
Tightening torque:
T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)
T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)
- Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>INSTALLATION .
