Inverter Water Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant. (Inverter assembly side) Ref. to COOLING (H4DO (HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT>INVERTER ASSEMBLY SIDE .

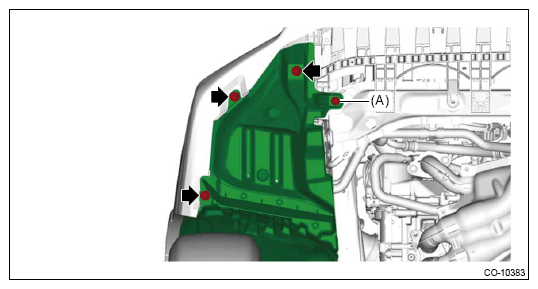

  3. Remove the screw (A) and clips, and turn over the mud guard - front RH.
    G13231202Courtesy of SUBARU OF AMERICA, INC.

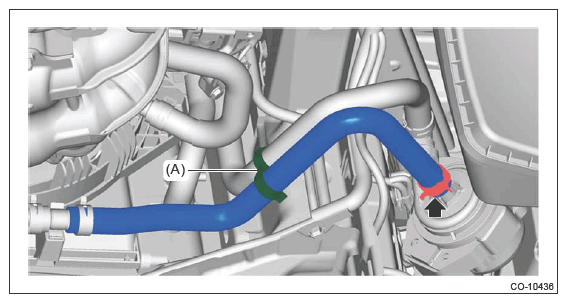

  4. Remove the clamp (A), and disconnect the inverter water pump inlet hose from the inverter water pump.
    G13231303Courtesy of SUBARU OF AMERICA, INC.

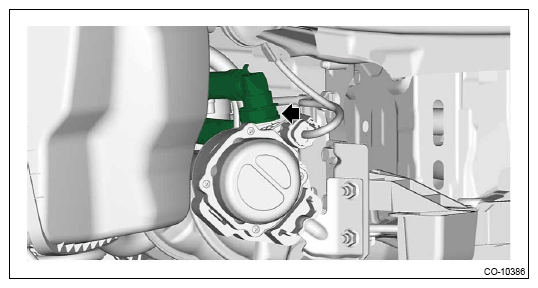

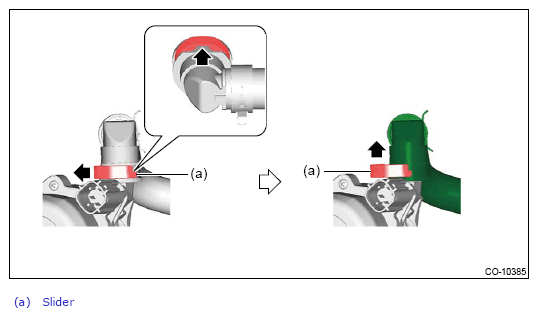

  5. Disconnect the quick connector from the inverter water pump.
    NOTE:
    • Disconnect the quick connector as shown in the figure.
    • Be careful not to pull the slider too much.
    G13231204Courtesy of SUBARU OF AMERICA, INC.
    G13231205Courtesy of SUBARU OF AMERICA, INC.

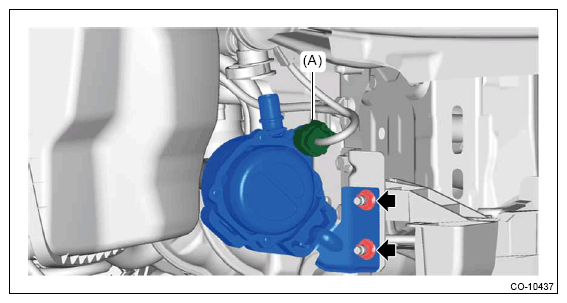

  6. Disconnect the connector (A) and remove the inverter water pump.
    G13231306Courtesy of SUBARU OF AMERICA, INC.
  7. When the water pipe and inverter water pump inlet hose are replaced

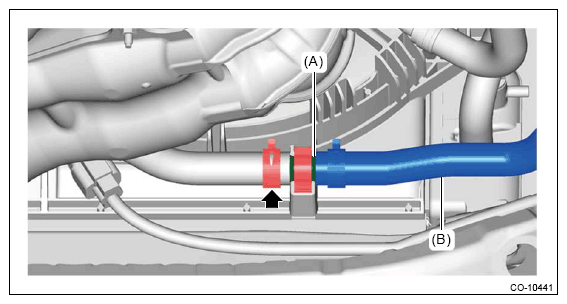

    1. Remove the water pipe (A) from the clamp.
    2. Disconnect the water pipe (A) and inverter water pump inlet hose (B) as a single unit from the inverter tank outlet hose.
      G13231307Courtesy of SUBARU OF AMERICA, INC.

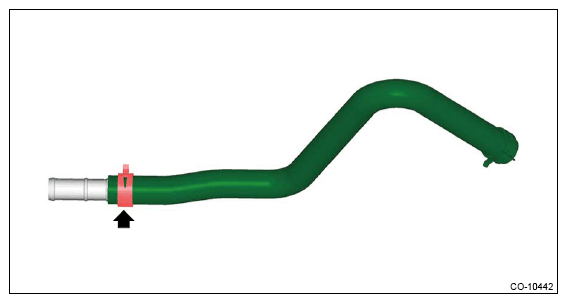

    3. Disconnect the inverter water pump inlet hose from the water pipe.
    G13231308Courtesy of SUBARU OF AMERICA, INC.

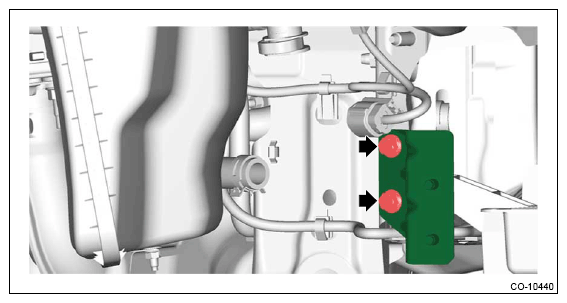

  8. Remove the bracket.
    NOTE: Remove if necessary.
G13231309Courtesy of SUBARU OF AMERICA, INC.
