Inverter Water Pump: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Attach the bracket.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    G13231309Courtesy of SUBARU OF AMERICA, INC.
  2. When the water pipe and inverter water pump inlet hose were replaced
    1. Connect the inverter water pump inlet hose to the water pipe.
      G13231308Courtesy of SUBARU OF AMERICA, INC.
    2. Connect the water pipe (A) and inverter water pump inlet hose (B) as a single unit to the inverter tank outlet hose.
    3. Install the water pipe (A) to the clamp.
    G13231307Courtesy of SUBARU OF AMERICA, INC.
  3. Install the inverter water pump, and connect the connector (A).

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    G13231306Courtesy of SUBARU OF AMERICA, INC.

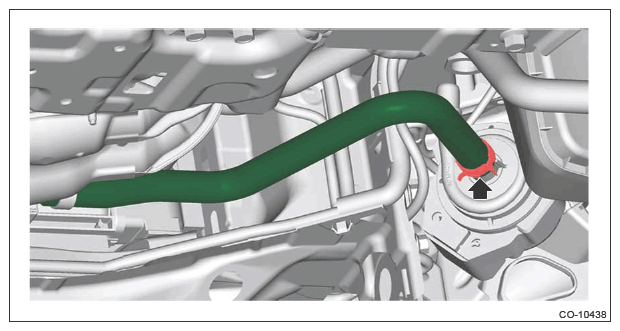

  4. Connect the inverter water pump inlet hose to the inverter water pump.
    G13231314Courtesy of SUBARU OF AMERICA, INC.
  5. Connect the battery ground terminal. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  6. Fill engine coolant. (Inverter assembly side) Ref. to COOLING (H4DO (HEV))>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT>INVERTER ASSEMBLY SIDE .
