Section 11 (HVAC System (Heater, Ventilator And A/C) (HEV)): Evaporator: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Using the refrigerant recovery system, discharge refrigerant. Ref. to AIR CONDITIONER (HEV)>REFRIGERANT RECOVERY PROCEDURE>PROCEDURE .
  2. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  3. Drain engine coolant. (Engine side) Ref. to COOLING (H4DO (HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  4. Remove the heater and cooling unit assembly. Ref. to AIR CONDITIONER (HEV)>HEATER AND COOLING UNIT>REMOVAL .
  5. Remove the internal condenser. Ref. to AIR CONDITIONER (HEV)>CONDENSER>REMOVAL>INTERIOR CONDENSER .
  6. Remove the heater core. Ref. to AIR CONDITIONER (HEV)>HEATER CORE>REMOVAL .
  7. Remove the motor - actuator mix. Ref. to AIR CONDITIONER (HEV)>AIR MIX DOOR ACTUATOR>REMOVAL .
  8. Remove the case assembly - heater unit.
    1. Remove the screws.
    2. Remove the lock, and remove the case assembly - heater unit.

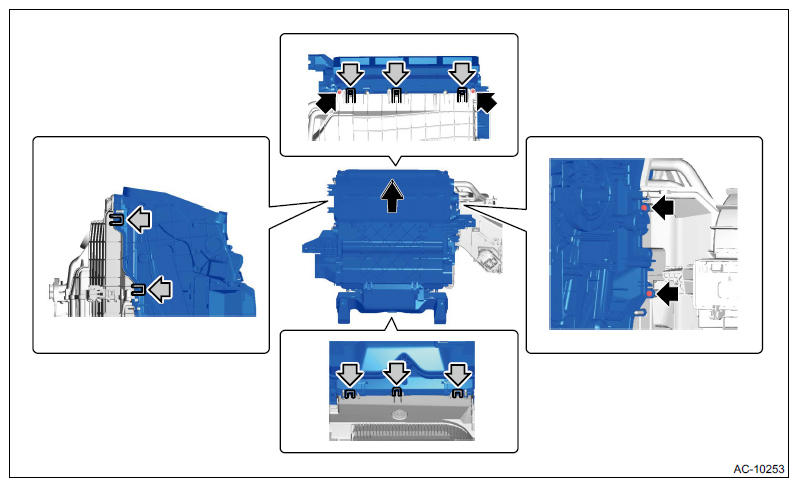

    G11245685Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the evaporator assembly as shown in the figure.

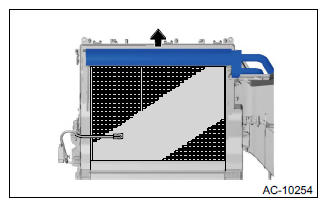

    G11245686Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the evaporator sensor. Ref. to AIR CONDITIONER (HEV)>EVAPORATOR SENSOR>REMOVAL .
