Interior Condenser

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Using the refrigerant recovery system, discharge refrigerant. Ref. to AIR CONDITIONER (HEV)>REFRIGERANT RECOVERY PROCEDURE>PROCEDURE .
  2. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  3. Drain engine coolant. (Engine side) Ref. to COOLING (H4DO (HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  4. Remove the heater and cooling unit assembly. Ref. to AIR CONDITIONER (HEV)>HEATER AND COOLING UNIT>REMOVAL .

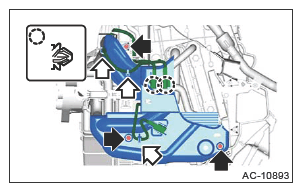

  5. Remove the cover - heater pipe.
    1. Remove the connector clip, and then remove the harness from the harness clamp.
    2. Remove the screws and detach the cover - heater pipe.
    G13234280Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the cover - evaporator.

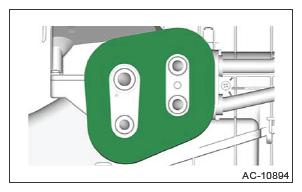

    1. Remove the packing.
      G13234281Courtesy of SUBARU OF AMERICA, INC.

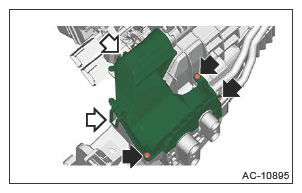

    2. Remove the screws and lock to remove the cover - evaporator.
    G13234282Courtesy of SUBARU OF AMERICA, INC.

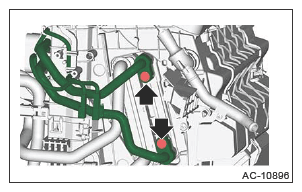

  7. Remove the pipe - condenser.
    1. Remove the bolt and remove the pipe - condenser.
      CAUTION: Seal the disconnected pipe and engaging part of condenser with a plug or vinyl tape to prevent foreign matter from entering.
    G13234283Courtesy of SUBARU OF AMERICA, INC.

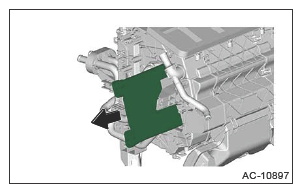

  8. Remove the internal condenser as shown in the figure.
    G13234284Courtesy of SUBARU OF AMERICA, INC.
