VDC Off Indicator Light Does Not Go Off

WARNING: This page is about a different variant/trim than selected.

Detecting condition:

Trouble symptom:  VDC OFF indicator light does not go off when starting the engine.

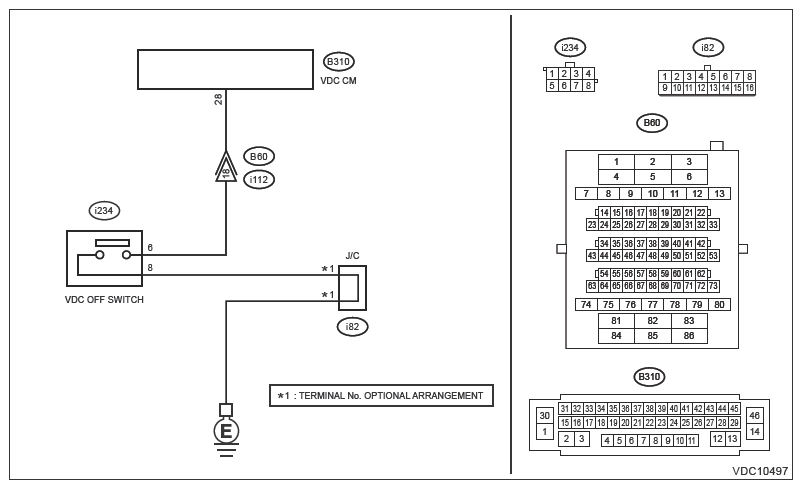

Wiring diagram:  Vehicle dynamics control system Ref. to WIRING SYSTEM (CROSSTREK MODEL (HEV)>VEHICLE DYNAMICS CONTROL SYSTEM .

G13245324Courtesy of SUBARU OF AMERICA, INC.
  1. READ DTC  .

    Read the DTC of [Brake Control] using the Subaru Select Monitor, Ref. to BRAKE CONTROL (DIAGNOSTICS) (HEV)>DIAGNOSTIC TROUBLE CODE (DTC) .

    Is DTC displayed?

    Yes  : Perform the diagnosis according to the DTC. Ref. to BRAKE CONTROL (DIAGNOSTICS) (HEV)>Diagnostic Trouble Code (DTC)>LIST .

    No  : Go to  2.

  2. CHECK VDC OFF SWITCH  .

    Using the Subaru Select Monitor, read data of [OFF SW Signal] in the [Data Monitor] of [Brake Control] while the engine is running, Ref. to BRAKE CONTROL (DIAGNOSTIC) (HEV)>DATA MONITOR .

    Does [OFF SW Signal] change according to operation of VDC OFF switch?

    Yes  : Go to  5.

    No  : Go to  3.

  3. CHECK VDC OFF SWITCH  .

    Remove and check VDC OFF switch. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC OFF SWITCH .

    Is the check result OK?

    Yes  : Go to  4.

    No  : Replace the VDC OFF switch.

  4. CHECK VDC OFF SWITCH CIRCUIT  .
    1. Disconnect the connector from the VDC Control Module & H/U.
    2. Measure the resistance between VDC Control Module & H/U connector and chassis ground.

      Connector & terminal

      (B310) No. 28 - Chassis ground:

      Is the resistance less than 10 Ω?

      Yes  : Check the VDC OFF switch circuit.

      No  : Go to  5.

  5. CHECK LAN SYSTEM  .

    Check the LAN system. Ref. to LAN SYSTEM (DIAGNOSTICS) (HEV)>BASIC DIAGNOSTIC PROCEDURE .

    Is the check result OK?

    Yes  : Go to  6.

    No  : Perform the diagnosis for LAN system.

  6. CHECK COMBINATION METER  .

    Check the combination meter, Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER SYSTEM>OPERATION>SELF-DIAGNOSIS DISPLAY MODE .

    Is the check result OK?

    Yes  : Replace the VDC Control Module & H/U. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U) .

    No  : Replace the combination meter. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER>REMOVAL .
