Drive Pinion Shaft Assembly: Removal

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the manual transmission assembly from the vehicle. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>MANUAL TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the transfer case together with the extension case assembly. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>TRANSFER CASE AND EXTENSION CASE ASSEMBLY>REMOVAL .
  3. Remove the transmission case. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>TRANSMISSION CASE>REMOVAL .

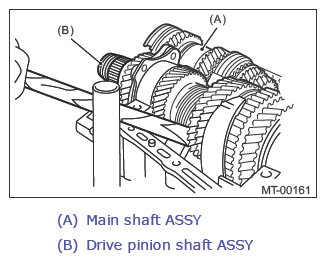

  4. Remove the drive pinion shaft assembly.
    NOTE: Use a hammer handle, etc. to remove if too tight.
    G13604343Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the main shaft assembly. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>MAIN SHAFT ASSEMBLY>REMOVAL .
