Oil Pump: Installation

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the O-rings.
    NOTE:
    • Use new O-rings.
    • Apply CVTF to the O-rings.
    G08318182Courtesy of SUBARU OF AMERICA, INC.
  2. Install the plate and the oil pump.
    NOTE: Apply CVTF to the bolt.

    Tightening torque:

    8.5 N.m (0.9 kgf-m, 6.3 ft-lb)

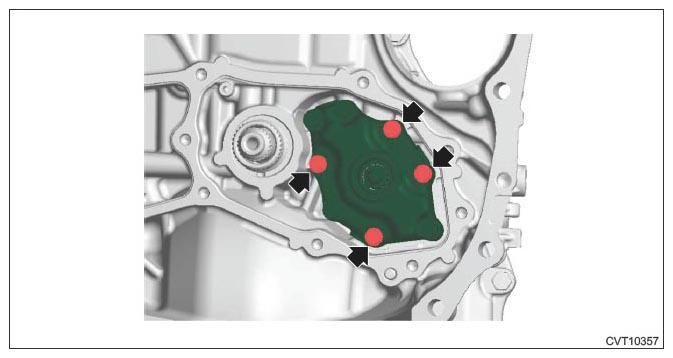

    G11256035Courtesy of SUBARU OF AMERICA, INC.
  3. Install the oil pump chain cover. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>OIL PUMP CHAIN>INSTALLATION .
  4. Install the torque converter assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TORQUE CONVERTER ASSEMBLY>INSTALLATION .
  5. Install the transmission assembly to the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AUTOMATIC TRANSMISSION ASSEMBLY>INSTALLATION .
