Oil Pump Chain: Installation

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Clean the mating surface of oil pump chain cover and converter case.
Using the ST, install the oil seal.
NOTE:
- Use a new oil seal.
- Apply CVTF to the press-fitting area.
Preparation tool:

ST: HOUSING BUSHING INSTALLER AND REMOVER (927720000)

Courtesy of SUBARU OF AMERICA, INC.
Install the drive sprocket.

Courtesy of SUBARU OF AMERICA, INC.

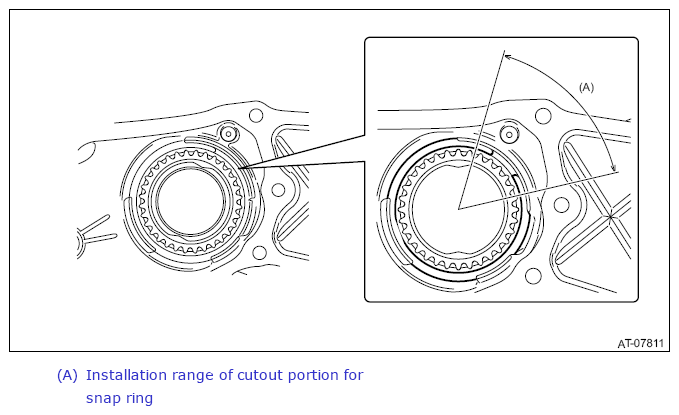

Install the snap ring so that its cut out portion is securely fitted into the snap ring groove of the oil pump chain cover.

Courtesy of SUBARU OF AMERICA, INC.
Place the oil pump chain on drive sprocket.
Place the oil pump chain on driven sprocket and install the driven sprocket to oil pump chain cover.

Courtesy of SUBARU OF AMERICA, INC.

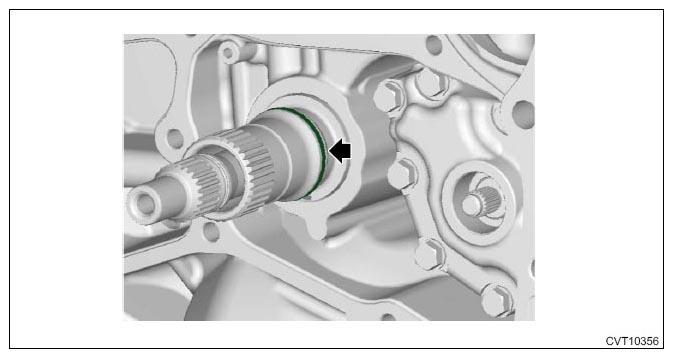

Install the seal rings.
NOTE:
- Use new seal rings.
- Apply CVTF to the seal rings.
- When installing the seal rings, do not expand the seal rings too much.
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket seamlessly to the mating surface of oil pump chain cover.
CAUTION: Do not apply liquid gasket at the arrowed hole.

Liquid gasket:

THREE BOND 1215B or equivalent

Courtesy of SUBARU OF AMERICA, INC.

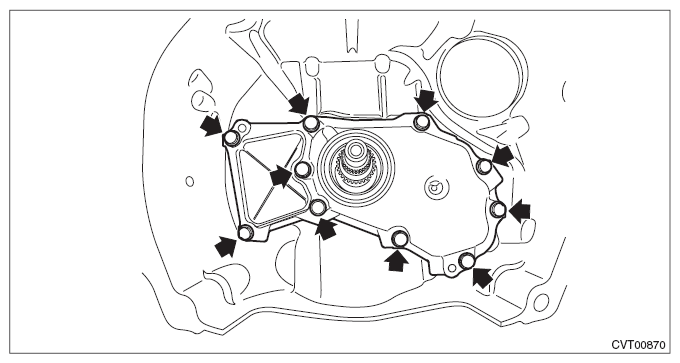

Install the oil pump chain cover.
Tightening torque:

21 N.m (2.1 kgf-m, 15.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TORQUE CONVERTER ASSEMBLY>INSTALLATION .
Install the transmission assembly to the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AUTOMATIC TRANSMISSION ASSEMBLY>INSTALLATION .
