Stop Light Switch: Removal

CAUTION: Before handling the airbag system components, always refer to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the 12V engine restart battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the cover assembly - instrument panel LWR driver. Refer to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  3. Remove the knee airbag module. Refer to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .

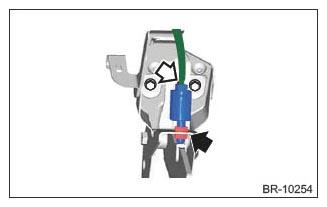

  4. Remove the stop light switch.
    1. Disconnect the stop light switch connector.
    2. Remove the nut, and remove the stop light switch.
      G11255252Courtesy of SUBARU OF AMERICA, INC.
