Knee Airbag Module: Removal
CAUTION:

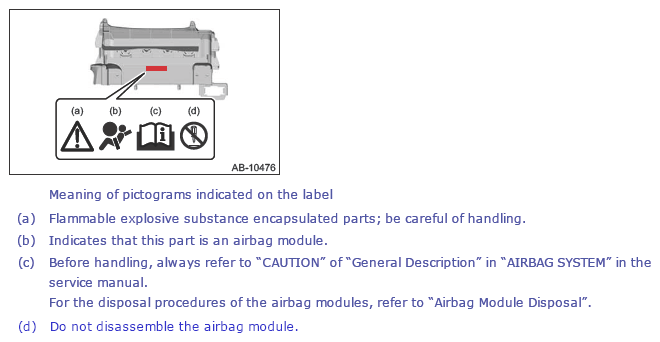

- Before handling the airbag system components, refer to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
- Do not allow harness and connectors to interfere or get tangled up with other parts.
- Turn the ignition switch to OFF.
- Disconnect the ground terminal from the 12V engine restart battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY
.NOTE: For the hybrid model, disconnect the battery negative terminal.
- Remove the cover assembly - instrument panel LWR driver. Refer to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
- Remove the knee airbag module.
- Disconnect the connector of knee airbag module. Refer to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>KNEE AIRBAG MODULE AND PASSENGER'S LAP SEAT BELT PRETENSIONER .
- Remove the data link connector.
- Remove the nuts, and remove the knee airbag module.
