Fuel Lid Opener (Except For Hybrid Model)

  1. Remove the cover - handle.
    1. Release the claws, and open the cover.
    2. Remove the screws and release the claws, then detach the cover - handle.

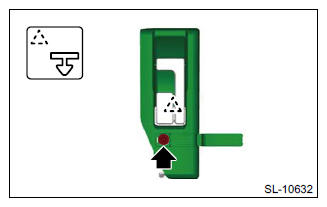

      • 4 door model
        G11246332Courtesy of SUBARU OF AMERICA, INC.

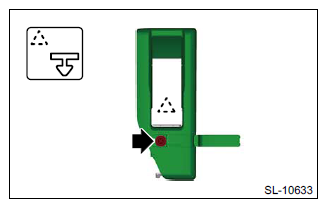

      • 5 door model
        G11246339Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the pull handle - opener.
    1. Remove the nut.
    2. Remove the cable assembly - trunk lid and the cable assembly - fuel from the pull handle - opener.
      • 4 door model
        G11246333Courtesy of SUBARU OF AMERICA, INC.

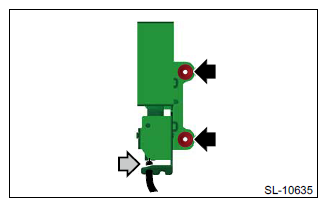

      • 5 door model
        G11246341Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the lower inner trim. Refer to EXTERIOR/INTERIOR TRIM>LOWER INNER TRIM>REMOVAL
  4. Remove the trim panel - trunk mat and the spacer - CTR. (4 door model)
  5. Remove the mat - floor rear, spacer - side LH, and spacer - side RH. (5 door model)
  6. Remove the spacer - rear floor front.

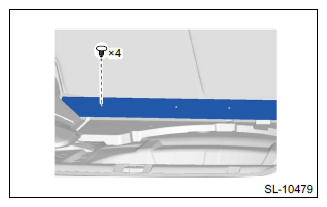

    1. Release the clips, and fold back the bottom of the cover COMPL - rear backrest LH and RH of the rear seat back.
      G11246334Courtesy of SUBARU OF AMERICA, INC.

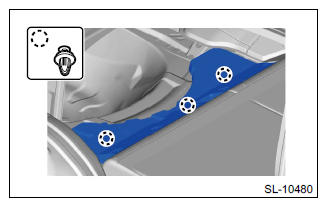

    2. Release the clips, then detach the spacer - rear floor front.
      G11246335Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the trim panel - trunk side RH. (4 door model) Refer to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL .
  8. Remove the trim panel - rear apron RH. (5 door model) Refer to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL>5 DOOR MODEL (EXCEPT FOR HYBRID) .
  9. Remove the cable assembly - fuel.
    1. Turn the cable assembly - fuel by 90 degrees, and pull it toward vehicle rear.
      G11246344Courtesy of SUBARU OF AMERICA, INC.

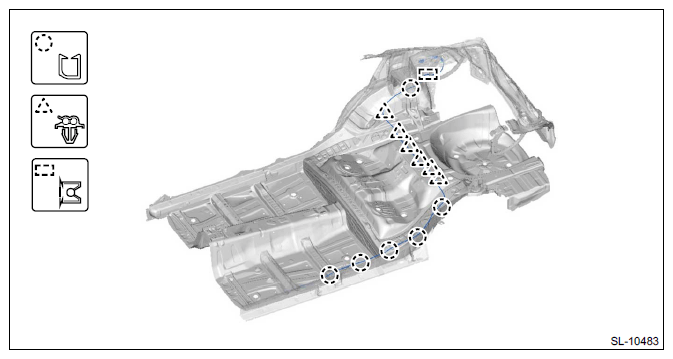

    2. Remove the cable clip, and remove the cable assembly - fuel.
      • 4 door model
        G11246345Courtesy of SUBARU OF AMERICA, INC.

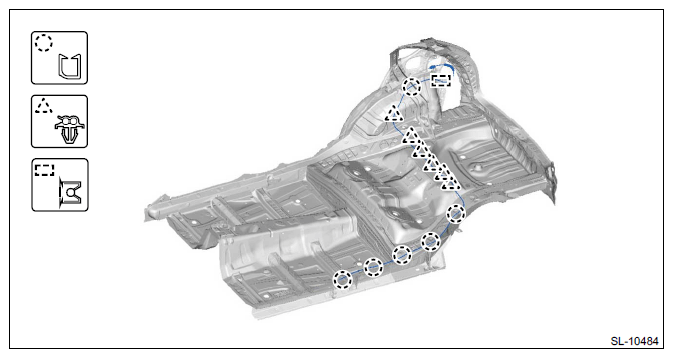

      • 5 door model
        G11246346Courtesy of SUBARU OF AMERICA, INC.
