Trunk Room Trim: Removal

  1. Remove the clips, and remove the trim panel - trunk lid.
    G11246574Courtesy of SUBARU OF AMERICA, INC.
  2. Tilt the backrest assembly forward.
  3. Remove the mat - trunk.
  4. Remove the trim panel - trunk rear.
    1. Remove the clip.
    2. Release the claws, and remove the trim panel - trunk rear.
      G11246482Courtesy of SUBARU OF AMERICA, INC.

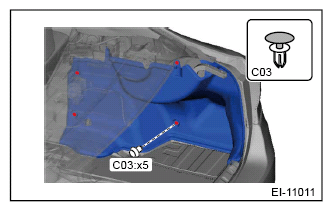

  5. Remove the clips, and remove the trim panel - trunk side.
    G12399341Courtesy of SUBARU OF AMERICA, INC.
