Multi-function Display (MFD): Removal

  1. Disconnect the ground terminal from 12V engine restart battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the grille assembly - CTR ventilation. Ref. to AIR CONDITIONER (EXCEPT FOR HEV))>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Remove the panel - center UPR, and remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>AUDIO>REMOVAL .
  4. Remove the cover - center UPR.
    1. Release the clip and hook, and then remove the cover - center UPR.

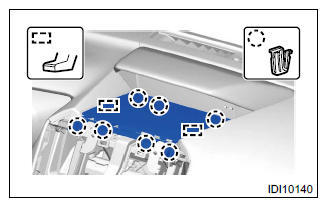

      G11246168Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Lightly push up the back of the cover - center UPR, hook the finger to the end portion and pull it toward you to remove it.
  5. Remove the multi-function display.
    CAUTION: Be careful not to damage the multi-function display or instrument panel.
    1. Remove the screws and release the clip.
    2. Pull the multi-function display assembly toward yourself, and disconnect the connector.

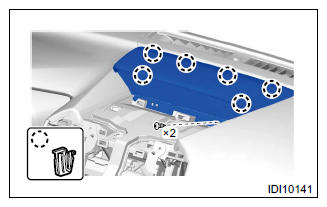

      G11246169Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the screws and then remove the multi-function display.

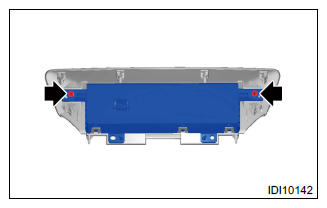

      G11246170Courtesy of SUBARU OF AMERICA, INC.
