DTC B1016: Shift Lock Circuit
DTC detecting condition:
Shift lock circuit is open, or shorted to power or ground.
Trouble symptom:
Shift lock does not be released or remain locked.

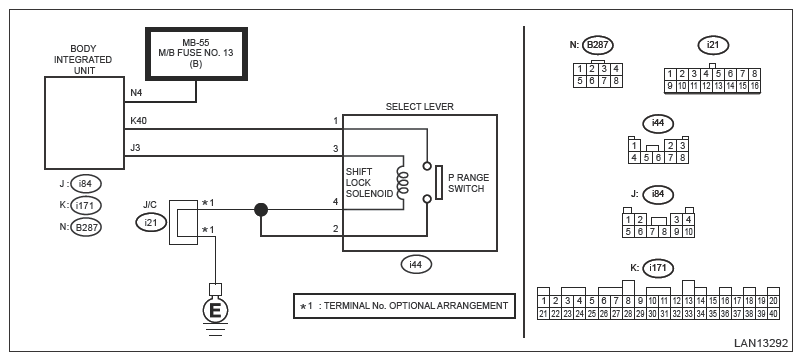

Wiring diagram:
Shift lock control system Ref. to WIRING SYSTEM (IMPREZA MODEL)>SHIFT LOCK CONTROL SYSTEM>WIRING DIAGRAM . Ref. to WIRING SYSTEM (CROSSTREK MODEL (EXCEPT FOR HEV))>SHIFT LOCK CONTROL SYSTEM>WIRING DIAGRAM . Ref. to WIRING SYSTEM (CROSSTREK MODEL (HEV))>SHIFT LOCK CONTROL SYSTEM>WIRING DIAGRAM .
- CHECK DTC
.
- Turn the ignition switch to ON.
- Maintain the shift lever in P range for five seconds or more.
- Maintain the brake pedal depressed for one second or more.
- Read the DTC of [Body Control] using the Subaru Select Monitor. Ref. to BODY CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .
Is DTC B1016 displayed? (Current malfunction)
Yes : Go to 2.
No : Even if DTC is displayed, the circuit has returned to a normal condition at this time.
Reproduce the failure, and then perform the diagnosis again.
NOTE: In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.
- CHECK FUSE
.
- Turn the ignition switch to OFF.
- Check the fuse.
Is the check result OK?
Yes : Go to 3.
No : Replace the defective fuse.
- CHECK HARNESS (OPEN CIRCUIT)
.
- Disconnect the shift lock solenoid connector.
- Using the tester, measure the resistance between terminals.
Connector & terminal
(i44) No. 4 - Chassis ground:
Is the resistance less than 10 Ω?
Yes : Go to 4.
No : Repair or replace the open circuit of harness.
- CHECK SHIFT LOCK SOLENOID
.
Using a tester, measure the resistance between shift lock solenoid terminals.
Terminals
Shift lock solenoid
No. 3 - No. 4:
Is the resistance between 27.6 - 30.5 Ω?
Yes : Go to 5.
No : Replace the shift lock solenoid. Ref. to CONTROL SYSTEMS>AT SHIFT LOCK SOLENOID AND "P" RANGE SWITCH>REMOVAL
- CHECK HARNESS (OPEN CIRCUIT)
.
Use a tester to measure the resistance between harness terminals.
Connector & terminal
(i44) No. 3 - (i84) No. 3:
NOTE: If body integrated unit and shift lock connector are not disconnected, disconnect them first and then perform measurement.Is the resistance less than 10 Ω?
Yes : Go to 6.
No : Repair or replace the open circuit of harness.
- CHECK HARNESS (GROUND SHORT CIRCUIT)
.
Measure the resistance between body integrated unit and chassis ground using a tester.
Connector & terminal
(i84) No. 3 - Chassis ground:
Is the resistance 1 MΩ or more?
Yes : Go to 7.
No : Repair or replace the ground short circuit of the harness.
- CHECK HARNESS (SHORT CIRCUIT TO POWER SUPPLY)
.
Measure the voltage between body integrated unit and chassis ground using a tester
Connector & terminal
(i84) No. 3 (+) - Chassis ground (-):
Is the voltage less than 1 V?
Yes : Go to 8.
No : Repair or replace the ground short circuit of the harness.
- CHECK CONNECTOR
.
Disconnect the body integrated unit connector and shift lock connector.
Is there poor contact of connector terminal?
Yes : Repair or replace the poor contact of terminal.
No : Go to 9.
- CHECK DTC
.
- Connect all the disconnected connectors.
- Turn the ignition switch to ON.
- Maintain the shift lever in P range and the brake pedal depressed for five seconds or more.
- Read the DTC of [Body Control] using the Subaru Select Monitor. Ref. to BODY CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .
Is DTC B1016 displayed? (Current malfunction)
Yes : Replace the body integrated unit. Ref. to SECURITY AND LOCKS>BODY INTEGRATED UNIT .
No : Even if DTC is displayed, the circuit has returned to a normal condition at this time.
Reproduce the failure, and then perform the diagnosis again.
NOTE: In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.
