Shift Lock Control System: Wiring Diagram

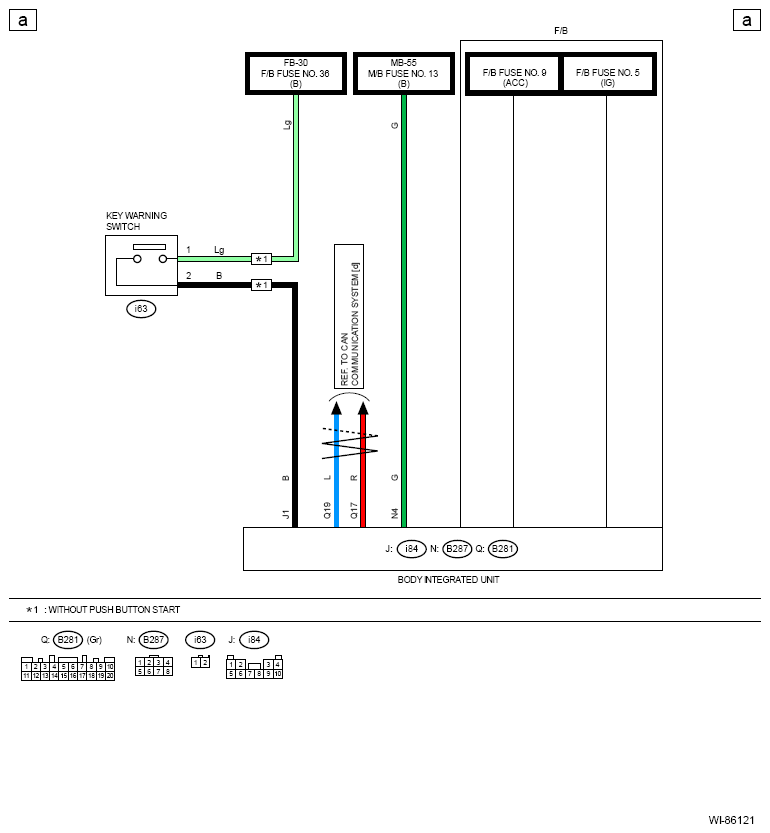

G13614207

Courtesy of SUBARU OF AMERICA, INC.

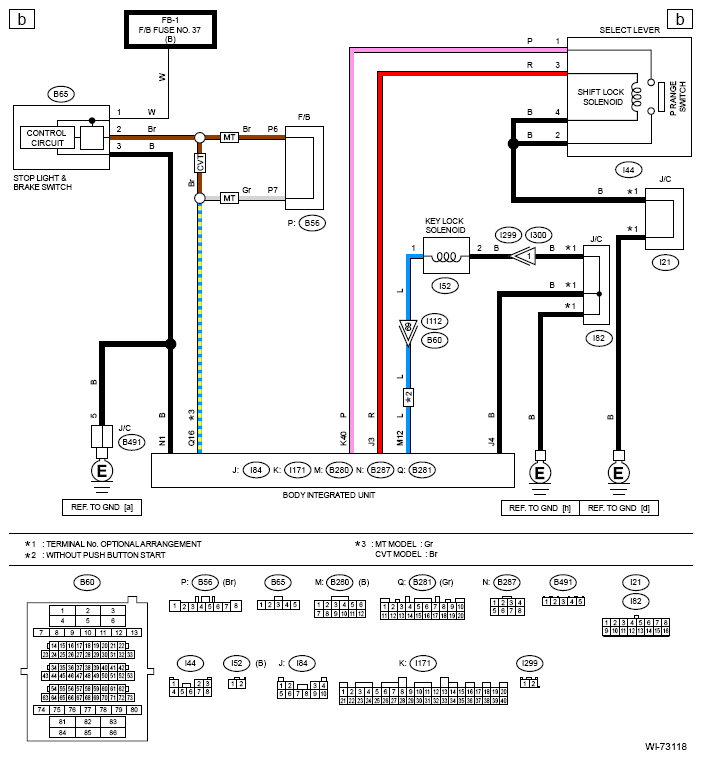

G13236359

Courtesy of SUBARU OF AMERICA, INC.

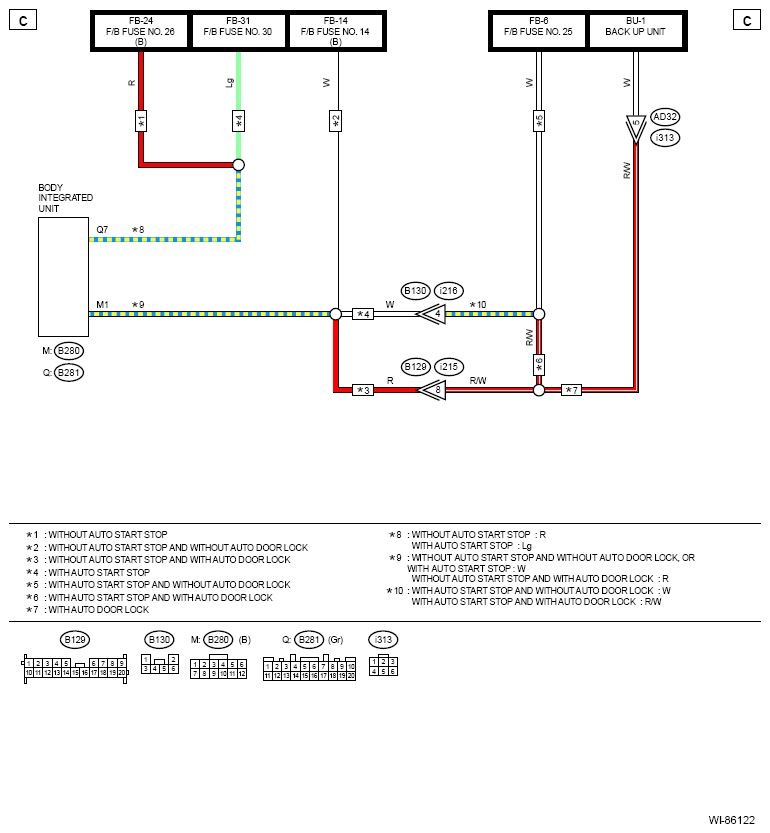

G13614209

Courtesy of SUBARU OF AMERICA, INC.
