PCV Hose: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover. Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>COLLECTOR COVER>REMOVAL .
  2. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  3. Remove the intercooler. Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>INTERCOOLER>REMOVAL .
  4. Remove the brake booster vacuum hose from the clip, and place the brake booster vacuum hose aside so that it does not interfere with the work.
    G13258767Courtesy of SUBARU OF AMERICA, INC.

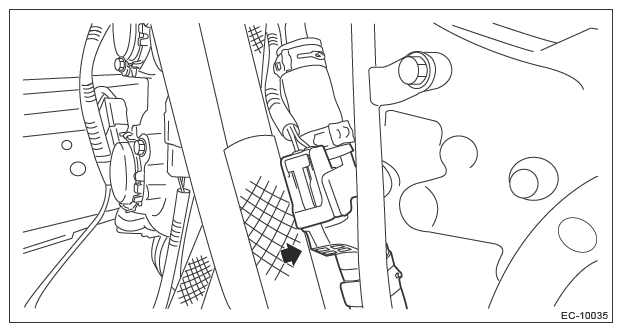

  5. Disconnect the PCV hose from the intake manifold, and remove the PCV hose from the PCV valve.
    G13258768Courtesy of SUBARU OF AMERICA, INC.
