PCV Hose ASSY No. 2

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  2. Remove the oil catch tank. Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>OIL CATCH TANK>REMOVAL .
  3. Remove the clamp cover.
    G13258773Courtesy of SUBARU OF AMERICA, INC.

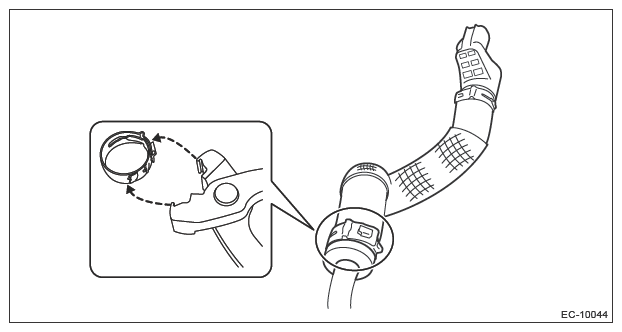

  4. Break the clamp, and remove the PCV hose assembly No. 2 from the oil catch tank.
    G13258774Courtesy of SUBARU OF AMERICA, INC.
  5. Install the PCV hose assembly No. 2 to the oil catch tank, and install the clamp using the Clamp pincer (14100134).
    NOTE: Use a new clamp.
    G13258775Courtesy of SUBARU OF AMERICA, INC.
  6. Install the clamp cover.

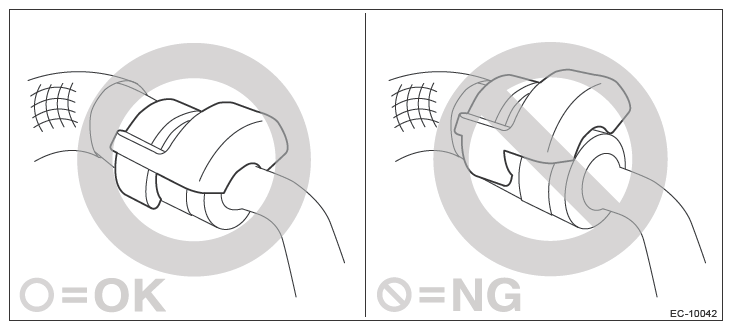

    CAUTION: Be careful not to allow the lower part of the clamp cover to ride over the PCV hose assembly No. 2.
    G13258776Courtesy of SUBARU OF AMERICA, INC.
  7. Install the oil catch tank. Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>OIL CATCH TANK>INSTALLATION .
  8. Connect the ground terminal to battery sensor. Refer to NOTE>NOTE>BATTERY .
