EGR Pipe: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover. Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>COLLECTOR COVER>REMOVAL .
  2. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  3. Remove the intercooler. Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>INTERCOOLER>REMOVAL .
  4. Remove the brake booster vacuum hose from the clip, and place the brake booster vacuum hose aside so that it does not interfere with the work.
    G13258690Courtesy of SUBARU OF AMERICA, INC.

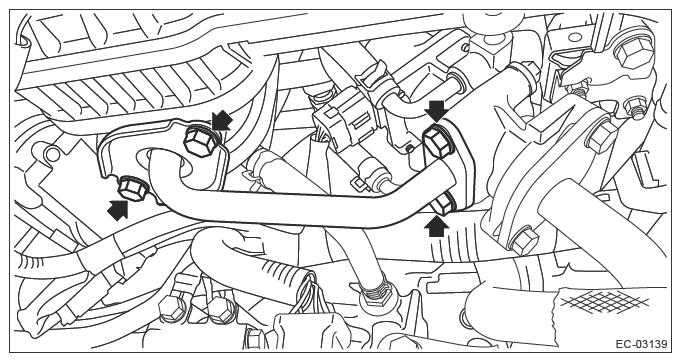

  5. Remove the bolts which secure the EGR pipe to the intake manifold and EGR control valve, and remove the EGR pipe.
    G09479961Courtesy of SUBARU OF AMERICA, INC.
