Back-Up Light And Neutral Position Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  2. Remove the collector cover. Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>COLLECTOR COVER>REMOVAL .
  3. Remove the intercooler. Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>INTERCOOLER>REMOVAL .

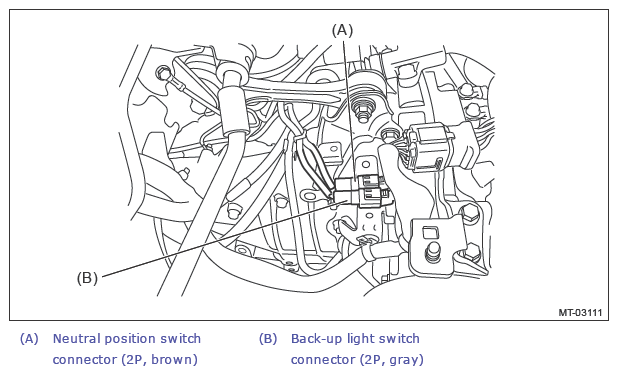

  4. Disconnect the connector back-up light switch & neutral position switch.
    G13261459Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the harness connector from bracket.
  6. Lift up the vehicle.
  7. Remove the harness from each clip.

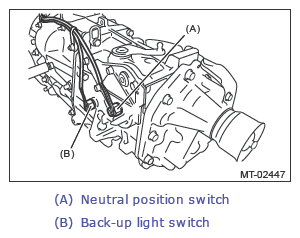

  8. Remove the back-up light switch & neutral position switch with the harness.
    G13261460Courtesy of SUBARU OF AMERICA, INC.
