Front Drive Shaft: Installation

Before installation, check the drive shaft assembly. Refer to DRIVE SHAFT SYSTEM>FRONT DRIVE SHAFT>INSPECTION .
Replace the differential side retainer oil seal with a new part.
- MT model: Refer to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT) (TY85)>DIFFERENTIAL SIDE RETAINER OIL SEAL>REPLACEMENT .
- CVT model: Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DIFFERENTIAL SIDE RETAINER OIL SEAL>REPLACEMENT .
  CAUTION: After pulling out the drive shaft assembly, be sure to replace with a new oil seal.
Insert the drive shaft assembly into the hub spline, and pull it into the specified position.
CAUTION: Do not hammer the drive shaft assembly when installing.
Tighten the new axle nut temporarily.
Using the ST, install the front drive shaft assembly to the transmission.
Preparation tool:

ST: OIL SEAL PROTECTOR (28399SA010)

Courtesy of SUBARU OF AMERICA, INC.

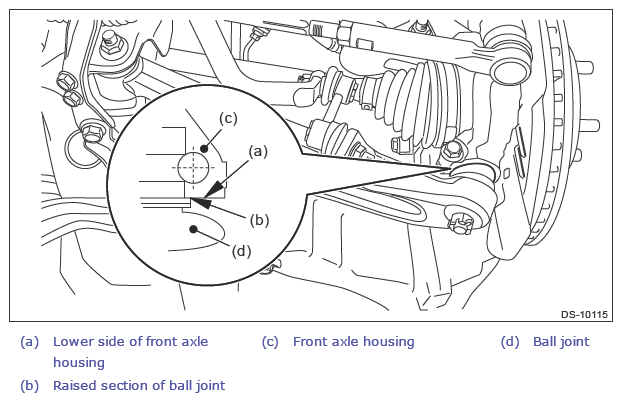

Install the ball joint to the front axle housing.
CAUTION:
- Before tightening, make sure the lower side of front axle housing and stepped section of ball joint are in contact.
- Be careful not to damage the boot of the joint.
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)
Install the stabilizer link.
Tightening torque:

60 N.m (6.1 kgf-m, 44.3 ft-lb)
While pressing the brake pedal, tighten the new axle nuts to the specified torque.
CAUTION: Do not load the front axle before tightening the axle nut. Doing so may damage the hub unit bearing.

Tightening torque:

220 N.m (22.4 kgf-m, 162.3 ft-lb)
After tightening axle nut, lock it securely.
Fill transmission gear oil. (MT model)
Fill differential gear oil. (CVT model)
Install the front wheels.
Tightening torque:

120 N.m (12.2 kgf-m, 88.5 ft-lb)
Inspect the wheel alignment and adjust if necessary.
- Inspection: Refer to FRONT SUSPENSION>WHEEL ALIGNMENT>INSPECTION .
- Adjustment: Refer to FRONT SUSPENSION>WHEEL ALIGNMENT>ADJUSTMENT .
  CAUTION:
  When the wheel alignment has been adjusted, perform the following adjustment.
  - Lane keep assist learning value clear (model with EyeSight): Refer to EYESIGHT (DIAGNOSTICS)>CLEAR ACTIVE LANE KEEP SYSTEM LEARNING VALUE>OPERATION .
  - VDC sensor midpoint setting mode: Refer to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U)>ADJUSTMENT .
Perform reinitialization of the auto headlight beam leveler system. (Model with auto headlight beam leveler) Refer to LIGHTING SYSTEM>AUTO HEADLIGHT BEAM LEVELER SYSTEM>PROCEDURE .
