Compressor ASSY: Removal

  1. Discharge of refrigerant HFC-134a (R134a) (Refer to ADJUSTMENT )
  2. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  3. Removal of air cleaner ASSY W/hose (Refer to REMOVAL )
  4. Removal of alternator cover (Refer to REMOVAL )
  5. Removal of belt alternator cover (Refer to REMOVAL )
  6. Removal of fan & alternator V belt (Refer to REMOVAL )
    G12591739Courtesy of SUBARU OF AMERICA, INC.

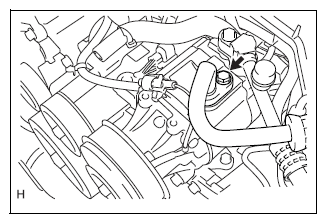

  7. Disconnection of suction hose SUB-ASSY
    1. Remove the bolt and disconnect the suction hose SUB-ASSY.
    2. Remove the O-ring from the suction hose SUB-ASSY.
      CAUTION: Wrap vinyl tape around the fitting areas of the disconnected suction hose SUB-ASSY and the compressor ASSY (with magnet clutch) to prevent entry of dirt or moisture.
    G12591740Courtesy of SUBARU OF AMERICA, INC.

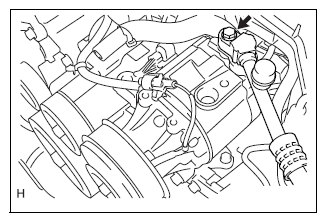

  8. Disconnection of cooler refrigerant discharge hose NO. 1
    1. Remove the bolt and disconnect cooler refrigerant discharge hose NO. 1.
    2. Remove the O-ring from discharge hose cooler refrigerant discharge hose NO. 1.
      CAUTION: Wrap vinyl tape around the fitting areas of disconnected cooler refrigerant discharge hose NO. 1 and the compressor ASSY (with magnet clutch) to prevent entry of dirt or moisture.
    G12591741Courtesy of SUBARU OF AMERICA, INC.

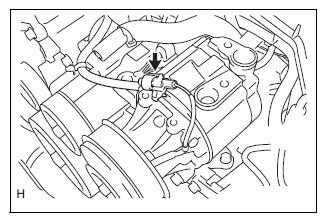

  9. Removal of compressor ASSY (with magnet clutch)
    1. Disconnect the connector.
      G12591742Courtesy of SUBARU OF AMERICA, INC.

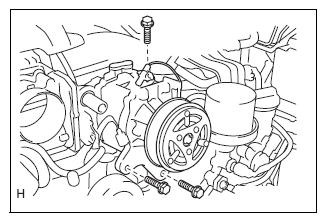

    2. Remove the 3 bolts and remove the compressor ASSY (with magnet clutch).
