Clutch Pedal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Removal of instrument side panel LH (refer to REMOVAL , Step 14)
  2. Removal of instrument panel under cover SUB-ASSY No. 1 (refer to LIGHT CONTROL RHEOSTAT )
  3. Removal of power steering computer (refer to POWER STEERING COMPUTER )
  4. Disconnection of steering intermediate shaft ASSY

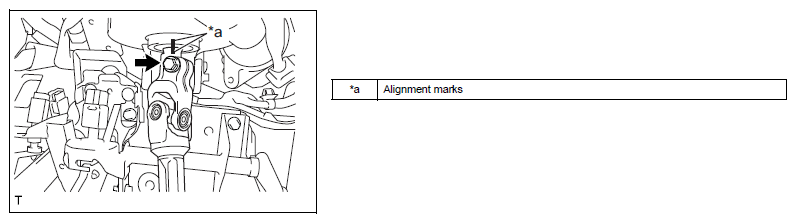

    1. Mark an alignment mark on the steering intermediate shaft and the steering column ASSY.
      G12587930Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the bolt to disconnect the steering intermediate shaft ASSY and the steering column ASSY.
    G12587931Courtesy of SUBARU OF AMERICA, INC.
  5. Removal of clutch pedal support SUB-ASSY
    1. Disconnect the 3 connectors.
      G12587932Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the connector and wiring harness clamp.
      G12587933Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the clip and push rod clevis pin to remove the clutch master cylinder push rod clevis from the clutch pedal lever SUB-ASSY.
      G12587934Courtesy of SUBARU OF AMERICA, INC.
    4. Remove the clip and push rod pin to remove the brake master cylinder push rod clevis from the brake pedal.
      G12587935Courtesy of SUBARU OF AMERICA, INC.
    5. Remove 2 nuts to remove the clutch master cylinder ASSY

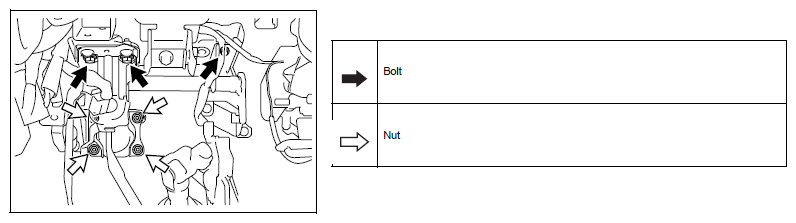

    6. Remove the 3 bolts, 4 nuts, and clutch pedal support SUB-ASSY. Captions in illustration
    G12587936Courtesy of SUBARU OF AMERICA, INC.
  6. Removal of clutch start switch ASSY (refer to INSTALLATION )
    G12587937Courtesy of SUBARU OF AMERICA, INC.
  7. Removal of clutch switch ASSY
    1. Remove the nut and then remove the clutch switch ASSY from the clutch pedal support SUB-ASSY.
    G12587938Courtesy of SUBARU OF AMERICA, INC.
  8. Removal of clutch pedal spring
    1. Remove the 2 E-rings and 2 clutch clevis pins.
    2. Remove the assist rod A, assist rod B, clutch pedal spring, and assist bushing.
    3. Remove the 2 bushings from the clutch pedal SUB-ASSY and clutch pedal support SUB-ASSY.
    G12587939Courtesy of SUBARU OF AMERICA, INC.
  9. Removal of clutch pedal SUB-ASSY
    1. Use a pin punch and hammer to drive in a pin and remove the clutch pedal lever SUB-ASSY.
      G12587940Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the clutch pedal SUB-ASSY and 2 clutch pedal bushings from the clutch pedal support SUB-ASSY.
    G12587941Courtesy of SUBARU OF AMERICA, INC.
  10. Removal of clutch pedal stopper
    1. Remove the clutch pedal stopper from the clutch pedal SUB-ASSY.
  11. Removal of clutch pedal cushion No. 1
    1. Remove the clutch pedal cushion No. 1 from the clutch pedal SUB-ASSY.
  12. Removal of clutch pedal pad
    1. Remove the clutch pedal pad from the clutch pedal SUB-ASSY.
