Name Plate: Removal

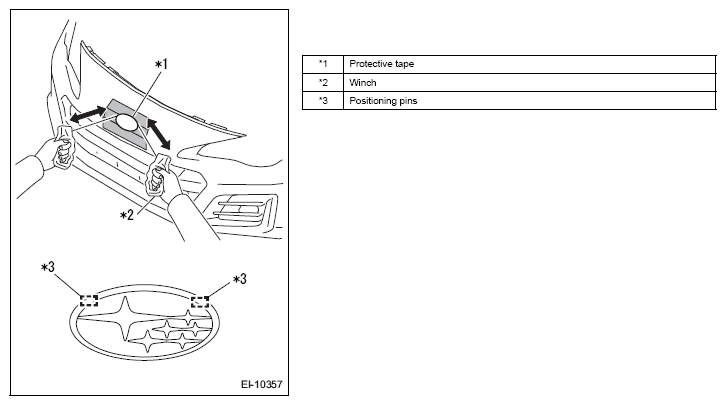

Removal of the front ornament emblem (Installed on the front side)

Apply protective tape around the front ornament emblem.

Courtesy of SUBARU OF AMERICA, INC.

Using a heat light, heat up the front ornament emblem.
WARNING: Be careful of burns from the heated body or the heat from the heat lamp.

NOTE: Heat up for 3 to 5 minutes at 40 to 60°C {104 to 140°F}.
Set a piano wire to the winch.
Pull the piano wire both ways and cut the adhesive part of the acrylic foam tape.
CAUTION: Be careful of the locations of the positioning pins.
Remove the push nut from the back side of the front bumper cover.
Remove the front ornament emblem.

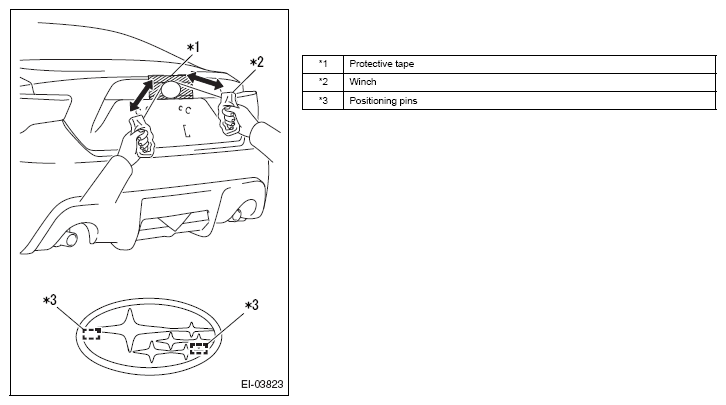

Removal of the rear ornament emblem (Installed on the rear side)

Apply protective tape around the rear ornament emblem.

Courtesy of SUBARU OF AMERICA, INC.

Using a heat light, heat up the rear ornament emblem.
WARNING: Be careful of burns from the heated body or the heat from the heat lamp.

NOTE: Heat up for 3 to 5 minutes at 40 to 60°C {104 to 140°F}.
Set a piano wire to the winch.
Pull the piano wire both ways, cut the adhesive part of the acrylic foam tape, and remove the rear ornament emblem.
CAUTION: Be careful of the locations of the positioning pins.
