Front Bumper: Removal

  1. Removal of the front side marker light ASSY LH (Refer to FRONT SIDE MARKER LIGHTS )
  2. Removal of the front side marker light ASSY RH
    NOTE: Remove the part in the same manner as LH side.
  3. Removal of the front bumper retainer UPR
    1. Remove the 2 clips.
    2. Remove the 5 bolts, and remove the front bumper retainer UPR.
      G12595352Courtesy of SUBARU OF AMERICA, INC.
  4. Removal of the front bumper cover
    1. Apply protective tape to the location shown in the figure.
      G12595353Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Perform same procedures for the RH side.
    2. Remove the 4 clips.
      NOTE: Perform same procedures for the RH side.
    3. Remove the 7 clips.
    4. Remove the 2 bolts.
      G11263054Courtesy of SUBARU OF AMERICA, INC.
    5. Remove the clip.
      NOTE: Perform same procedures for the RH side.
      G11263055Courtesy of SUBARU OF AMERICA, INC.

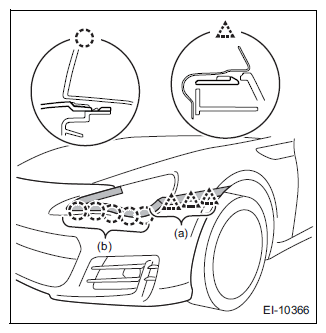

    6. Pull the front bumper cover in the direction of the arrow in the figure, and release the 8 claws.
      NOTE:
      1. Release 3 claws (a) located on the side of the vehicle by pulling the bumper cover at a right angle to the surface.
      2. Check that the claws (a) are released.
      3. Release 5 claws (b) located on the front side of the vehicle by pulling the bumper cover towards the front of the vehicle.
      4. Perform same procedures for the RH side.
    7. Disconnect each connector, and remove the front bumper cover.
      G11263056Courtesy of SUBARU OF AMERICA, INC.
