Illumination Control Switch

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - instrument panel LWR Driver OUT. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL
  3. Remove the illumination control switch.

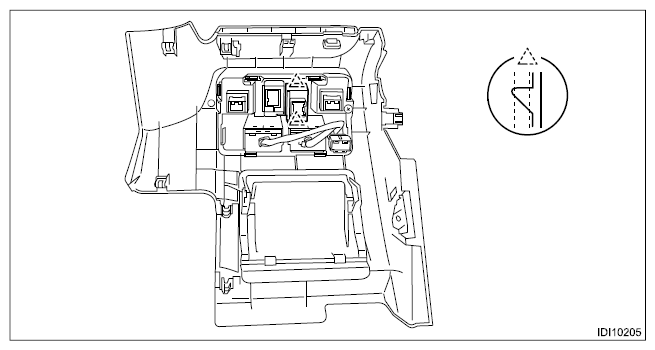

    1. Release the claws and remove the illumination control switch.
      G12456069
