Body Integrated Unit: Removal

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .

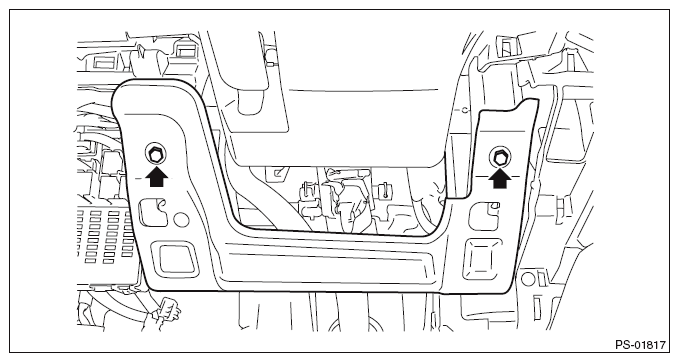

  3. Remove the panel - knee guard.
    G10272470Courtesy of SUBARU OF AMERICA, INC.

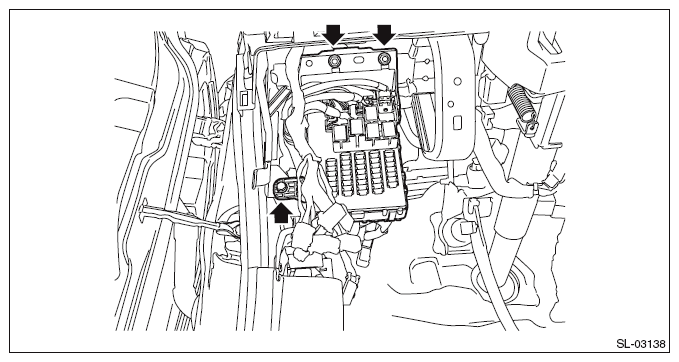

  4. Disconnect the body integrated unit (fuse & relay box).
    1. Disconnect the connector.
    2. Remove the bolts and nuts, and remove the body integrated unit (fuse & relay box).
    G10272973Courtesy of SUBARU OF AMERICA, INC.
