CVTF Cooler Pipe and Hose: Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: When installing the CVTF cooler pipe assembly on vehicle side, be careful not to bend the A/C pipe.
  1. Temporarily install the CVTF cooler pipe COMPL, transmission hanger and transmission radio ground cord to the transmission.
    NOTE: Use a new gasket.
  2. Tighten the union screws and bolts in the order of (A) → (B) → (C).
    CAUTION: Be careful not to deform or damage the terminal of transmission radio ground cord.

    Tightening torque:

    T1: 35 N.m (3.6 kgf-m, 25.8 ft-lb)

    T2: 40 N.m (4.1 kgf-m, 29.5 ft-lb)

    T3: 41 N.m (4.2 kgf-m, 30.2 ft-lb)

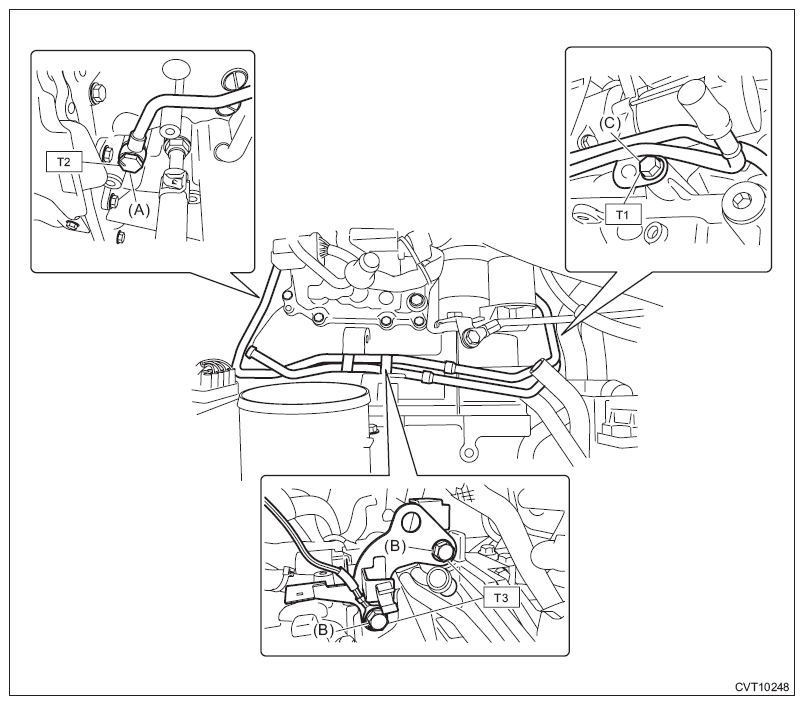

    Fig 1: CVTF Cooler Pipe COMPL, Transmission Hanger And Transmission Radio Ground Cord Bolts With Torque Specifications
    G11572808Courtesy of SUBARU OF AMERICA, INC.
  3. Install the air breather hose. <Ref. to INSTALLATION , Air Breather Hose.>
  4. Insert the transmission case cover (small) between transmission case cover (large) and transmission to install.
    NOTE: When inserting, be careful that the insulator inside transmission case cover is not turned over.

    Tightening torque:

    7 N.m (0.7 kgf-m, 5.3 ft-lb)

    Fig 2: Inserting Transmission Case Cover (Small) Between Transmission Case Cover (Large)
    G10274945Courtesy of SUBARU OF AMERICA, INC.
    Fig 3: Locating Transmission Case Cover Bolts
    G11572607Courtesy of SUBARU OF AMERICA, INC.
  5. Install the CVTF cooler (with warmer feature).

    Tightening torque:

    23 N.m (2.3 kgf-m, 17.0 ft-lb)

    Fig 4: Locating CVTF Cooler (With Warmer Feature) Bolts
    G10275104Courtesy of SUBARU OF AMERICA, INC.
  6. Replace the CVTF cooler hose with a new part. <Ref. to DISASSEMBLY , CVTF Cooler (With Warmer Function).> <Ref. to ASSEMBLY , CVTF Cooler (With Warmer Function).>
  7. Install the CVTF cooler hose.
    Fig 5: CVTF Cooler Hose
    G10274901Courtesy of SUBARU OF AMERICA, INC.
  8. Install the harness clip, and connect the following transmission radio ground terminal and transmission harness connector.

    Tightening torque:

    13 N.m (1.3 kgf-m, 9.6 ft-lb)

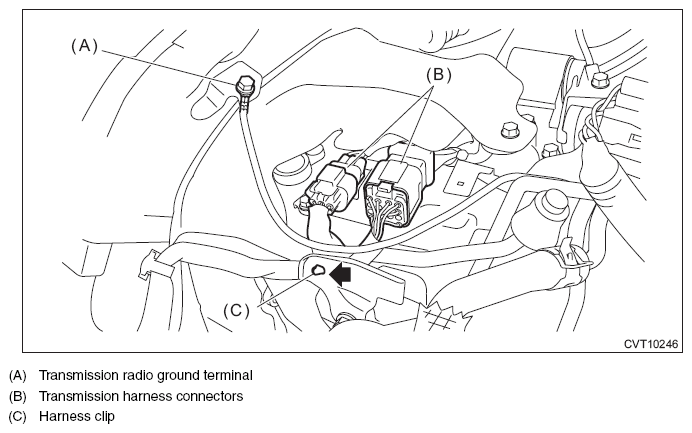

    Fig 6: Locating Harness Clip
    G11572813Courtesy of SUBARU OF AMERICA, INC.
  9. Install the CVTF cooler pipe assembly.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    Fig 7: Locating CVTF Cooler Pipe Assembly Mounting Bolt
    G10275099Courtesy of SUBARU OF AMERICA, INC.
  10. Install the A/C pipe to clip.
  11. Install the CVTF cooler (air cool) inlet hose and the CVTF cooler (air cool) outlet hose.
    NOTE: Use new CVTF cooler (air cool) inlet hose and the CVTF cooler (air cool) outlet hose.
    Fig 8: CVTF Cooler (Air Cool) Inlet Hose And Outlet Hose
    G10275098Courtesy of SUBARU OF AMERICA, INC.
  12. Install the headlight assembly LH. <Ref. to INSTALLATION , Headlight Assembly.>
  13. Install the front bumper. <Ref. to INSTALLATION , Front Bumper.>
  14. Lift up the vehicle.
  15. Install the CVTF CVT inlet hose and CVTF CVT outlet hose.
    NOTE: Use new CVTF CVT inlet hose and CVTF CVT outlet hose.
    Fig 9: CVTF CVT Inlet Hose And Outlet Hose
    G10274910Courtesy of SUBARU OF AMERICA, INC.
  16. Lower the vehicle.
  17. Install the air intake boot assembly. <Ref. to INSTALLATION , Air Intake Boot.>
  18. Install the battery box and battery. <Ref. to INSTALLATION , Battery.>
  19. Adjust the CVTF level and check there is no leakage. <Ref. to ADJUSTMENT , CVTF.>
