CVTF Cooler (With Warmer Function): Disassembly
WARNING: This page is about a different variant/trim than selected.

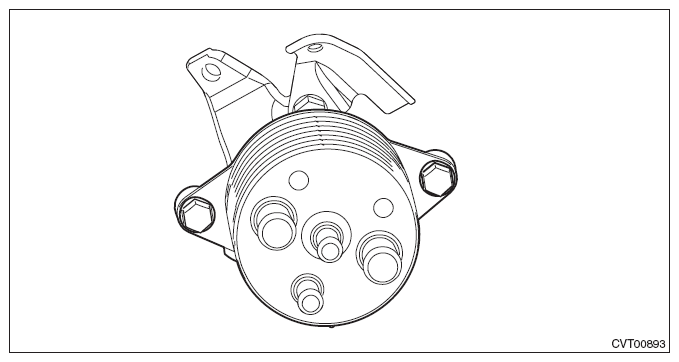

- Remove the CVTF cooler (with warmer feature).
Courtesy of SUBARU OF AMERICA, INC.

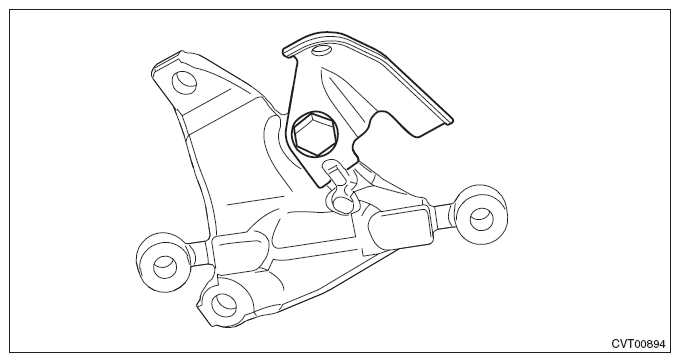

- Remove the harness stay.
Courtesy of SUBARU OF AMERICA, INC.
