Exhaust Gas RECIRCULATION Control Circuit Range/Performance

WARNING: This page is about a different variant/trim than selected.

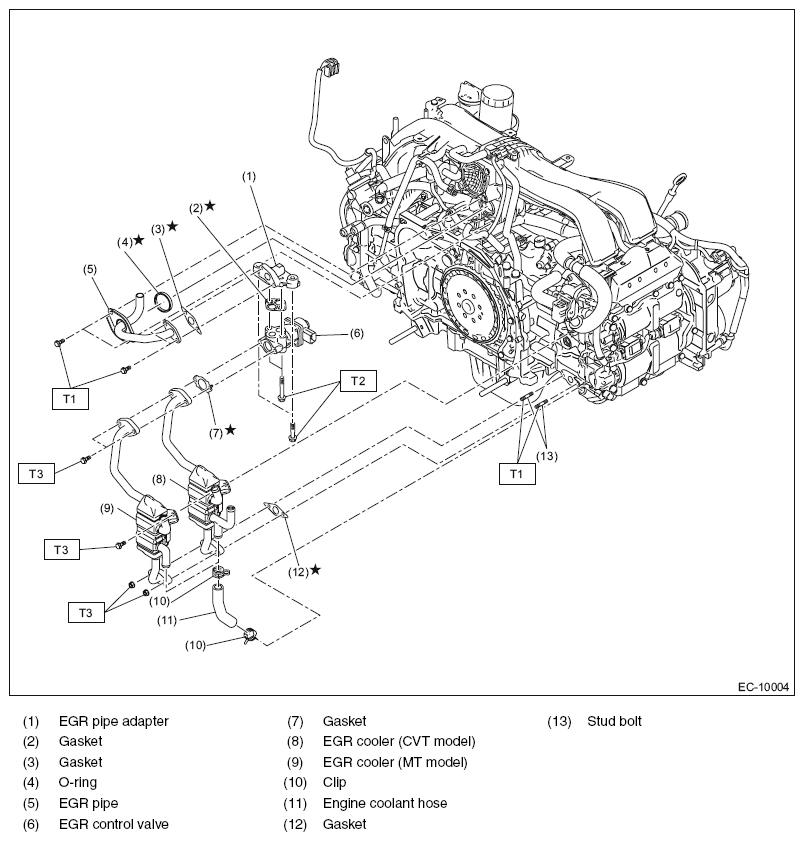

Fig 1: Exploded View Of Exhaust Gas Recirculation Control System
G11566126Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 19 (1.9, 14.0)

T3: Ref. to  INSTALLATION  , EGR Cooler.
