EGR Control Valve: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground terminal from battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Remove the clip (A), and loosen the clamps (B) and (C) securing the air intake boot.

Fig 1: Air Intake Boot Clip And Clamps
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the air cleaner case (rear) and throttle body, and move it to the left side wheel apron.

Fig 2: Removing Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.
Loosen the bolts holding the EGR cooler to the cylinder head RH.

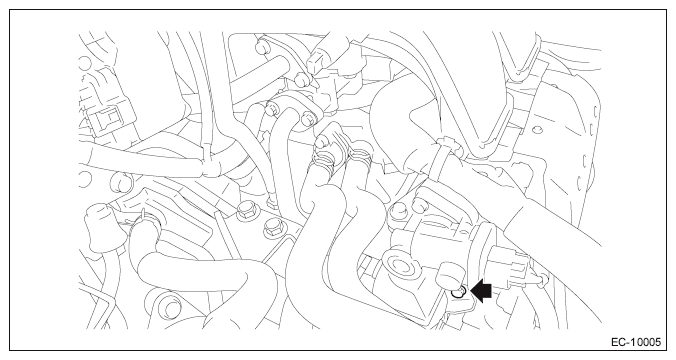

Fig 3: Identifying EGR Cooler Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the EGR pipe. Ref. to REMOVAL , EGR Pipe.
Remove the bolts (A) securing the EGR cooler to the EGR control valve.
Disconnect the connector (B) from EGR control valve, and remove the EGR control valve from the intake manifold assembly.

Fig 4: Identifying EGR Control Valve Bolts And Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the EGR pipe adapter from EGR control valve.

Fig 5: Identifying EGR Pipe Adapter Bolts

Courtesy of SUBARU OF AMERICA, INC.
