Cylinder Block 1

WARNING: This page is about a different variant/trim than selected.

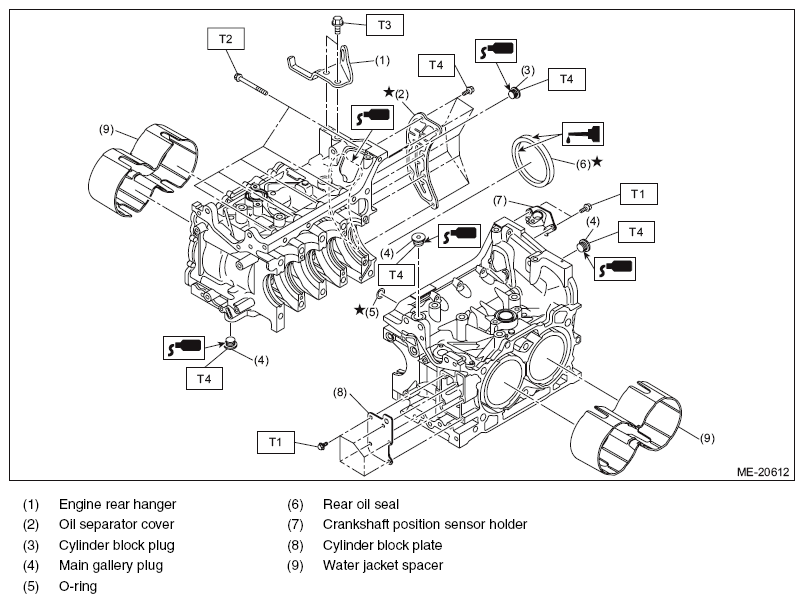

Fig 1: Exploded View Of Cylinder Block 1 Replacement Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 25 (2.5, 18.4)

T3: 36 (3.7, 26.6) (5) O-ring

T4: Ref. to CYLINDER BLOCK , ASSEMBLY, Cylinder Block.
