Cylinder Block

Liquid gasket:

THREE BOND 1105 (Part No. 004403010) or equivalent

Tightening torque:

37 N.m (3.8 kgf-m, 27.3 ft-lb)

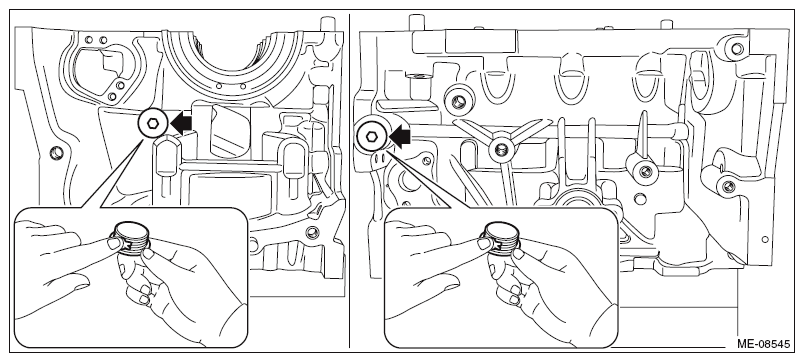

Fig 1: Applying Liquid Gasket To Threaded Portion Of Main Gallery Plug

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 2: Locating Cylinder Block Plate Bolts

Courtesy of SUBARU OF AMERICA, INC.

Liquid gasket:

THREE BOND 1105 (Part No. 004403010) or equivalent

Tightening torque:

T1: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

T2: 37 N.m (3.8 kgf-m, 27.3 ft-lb)

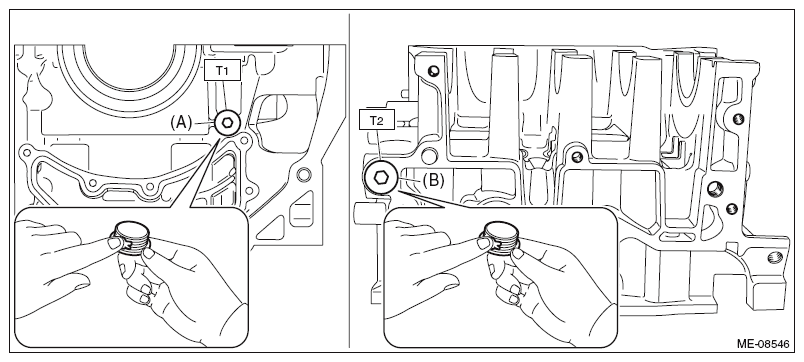

Fig 3: Applying Liquid Gasket To Threaded Portions Of Cylinder Block Plug And Main Gallery Plug

Courtesy of SUBARU OF AMERICA, INC.

1. Apply liquid gasket to the mating surfaces of oil separator cover.
   NOTE:

   • Use new oil separator cover.
   • Before applying liquid gasket, degrease the old liquid gasket seal surface of cylinder block RH.
   • Install within 5 min. after applying liquid gasket.

   Liquid gasket:

   Mating surface

   THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

   Liquid gasket applying diameter:

   4±1 mm (0.1772±0.0197 in)

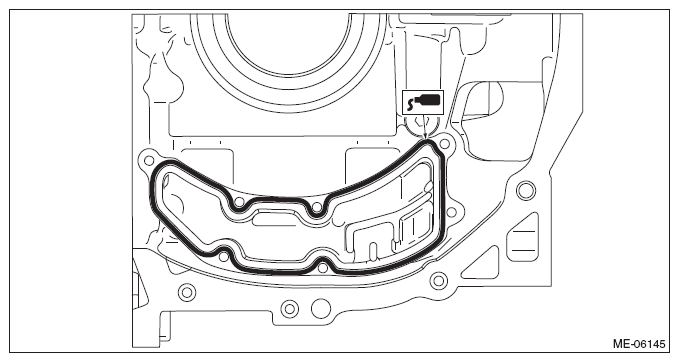

   Fig 4: Liquid Gasket Application Area

   Courtesy of SUBARU OF AMERICA, INC.
2. Install the oil separator cover to the cylinder block RH, and tighten the oil separator cover bolts in numerical order as shown in the figure.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

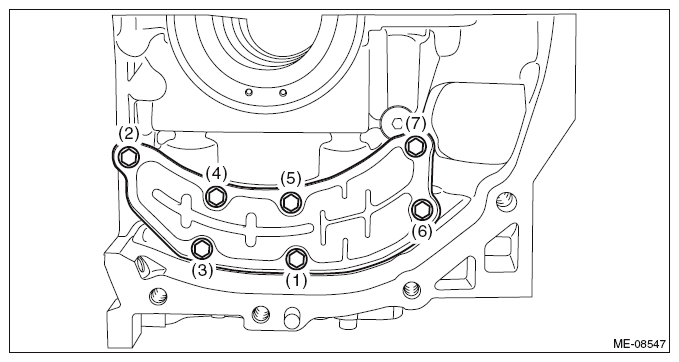

Fig 5: Oil Separator Cover Bolts Tightening Sequence

Courtesy of SUBARU OF AMERICA, INC.
