Transmission Control Module (TCM): Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground terminal from battery sensor. Ref. to
BATTERY
NOTE:
Repair Contents.
- Remove the air cleaner case. Ref. to
REMOVAL
, Air Cleaner Case.

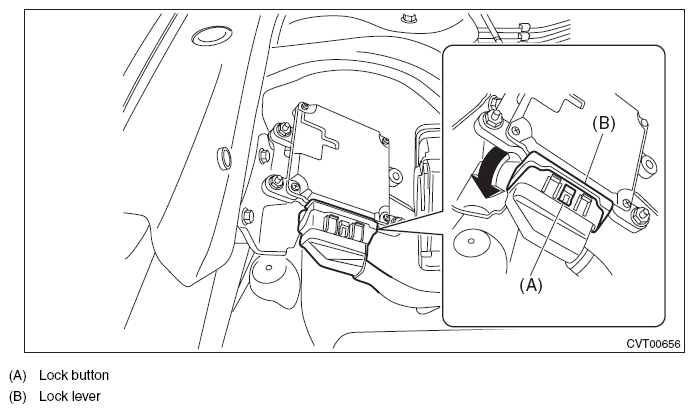

- Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.
Courtesy of SUBARU OF AMERICA, INC.

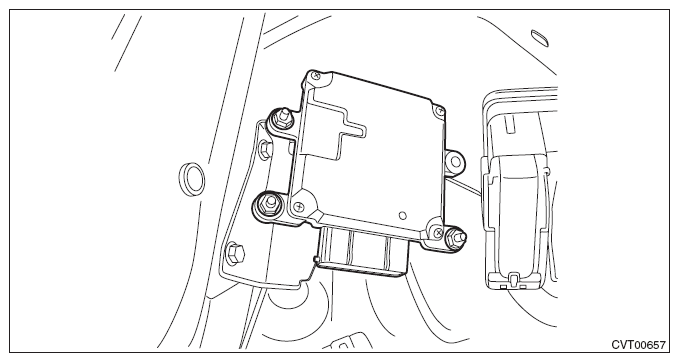

- Remove the TCM.
Courtesy of SUBARU OF AMERICA, INC.
