Inhibitor Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
    NOTE: Repair Contents.
  2. While pressing the shift lock release button, shift the select lever to the "N" range.
  3. Lift up the vehicle.
  4. Remove the front exhaust pipe. Ref. to REMOVAL , Front Exhaust Pipe.
  5. Remove the harness stay.
    Fig 1: Identifying Harness Stay Bolt
    G10276056Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the snap pin and washer.

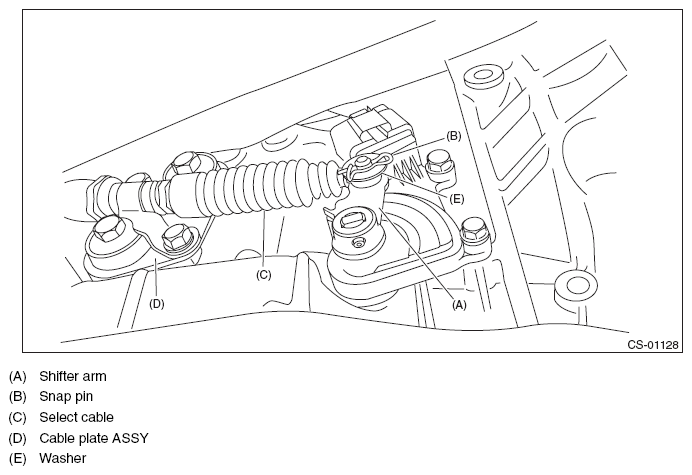

    Fig 2: Identifying Shifter Arm Components
    G11574981Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the spring pin and shifter arm.

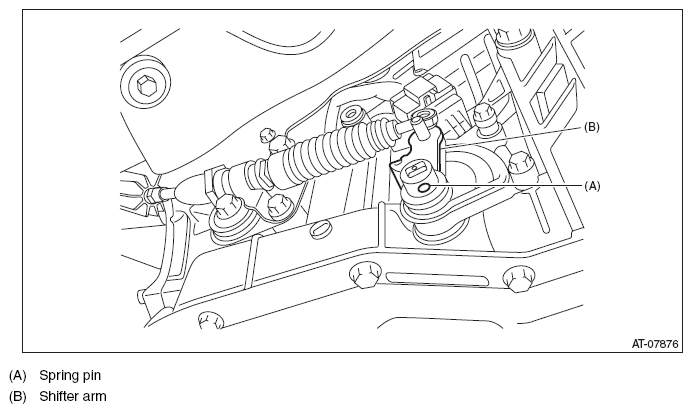

    Fig 3: Identifying Spring Pin And Shifter Arm
    G11574982Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the inhibitor harness connector from inhibitor switch.
  9. Remove the two inhibitor switch securing bolts.
    Fig 4: Identifying Inhibitor Switch Bolts
    G07913384Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the inhibitor switch.
