Front Exhaust Pipe: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts.
  1. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
    NOTE: Repair Contents.
  2. Lift up the vehicle.
  3. Remove the under cover. Ref. to REMOVAL , Front Under Cover.
  4. Disconnect the front oxygen (A/F) sensor connector (A) and remove the clip (B) fastening the harness.
  5. Disconnect the rear oxygen sensor connector (C) and remove the bracket (D) and (E) fastening the harness.

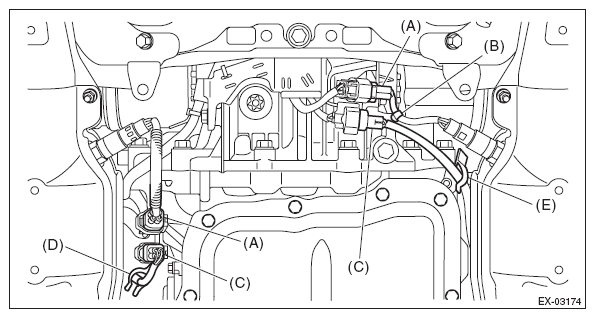

    Fig 1: Identifying Front And Rear Oxygen Sensor Connector
    G10264135Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the bolts, springs and nuts securing the rear exhaust pipe to the front exhaust pipe assembly.

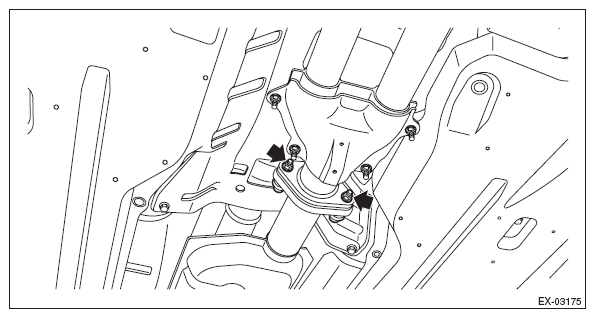

    Fig 2: Identifying Front Exhaust Pipe Assembly Nuts And Bolts
    G10264136Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the bolt which holds front exhaust pipe assembly to hanger bracket.

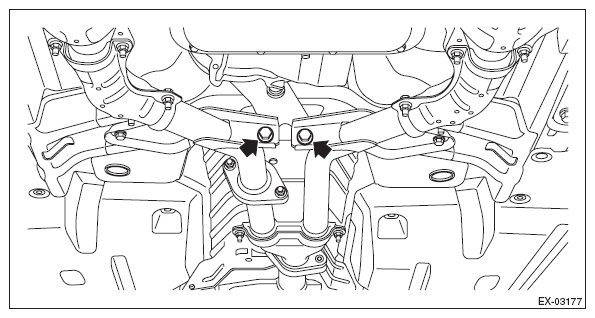

    Fig 3: Identifying Front Exhaust Pipe Hanger Bracket Bolt
    G10264137Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the nuts which hold front exhaust pipe assembly onto cylinder heads.
    CAUTION: Be careful not to drop the front exhaust pipe assembly.

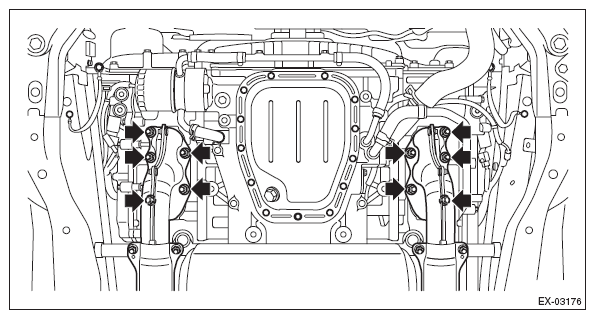

    Fig 4: Identifying Front Exhaust Pipe Assembly Nuts
    G10264138Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the front exhaust pipe assembly from the vehicle body.
CAUTION:
  • Be careful not to let the front exhaust pipe assembly fall off when removing, since it is very heavy.
  • After removing the front exhaust pipe assembly, do not apply excessive pulling force on the rear exhaust pipe.
